Description
HUAWEI MateBook Fold ULTIMATE DESIGN Kirin X90 Plus (CN Version)
Important Notice: This is a Chinese-market Huawei model. It supports Simplified Chinese, English, Traditional Chinese, Tibetan, and Uyghur; however, it does not support Google Mobile Services (GMS), including the Google Play Store. Please consider this compatibility limitation before purchasing.
Device model codes: SLM-W24 for 24GB/512GB and 24GB/1TB; SLM-W32 for 32GB/2TB.
The Kirin X90 Plus edition of the HUAWEI MateBook Fold ULTIMATE DESIGN combines an 18-inch folding OLED display with HarmonyOS 6.1 and support for the included M-Pen 3. Its screen folds into two 13-inch working areas, while the separate wireless keyboard gives you a physical typing surface. PDAPlaza offers this Chinese-market stylus and keyboard configuration in the verified memory and color combinations listed below.
Key features
- 18-inch dual-layer OLED display with UTG glass and 3296 × 2472 unfolded resolution.
- Kirin X90 Plus processor with a 28 W TDP.
- HUAWEI M-Pen 3 included for supported handwriting and drawing applications.
- NearLink wireless keyboard with 1.5 mm key travel and a pressure-sensitive touchpad.
- DisplayPort input supports monitor mode through the left USB-C port when unfolded, with a separately obtained full-featured cable.
- Six speakers and four microphones, with an 8 MP front camera.

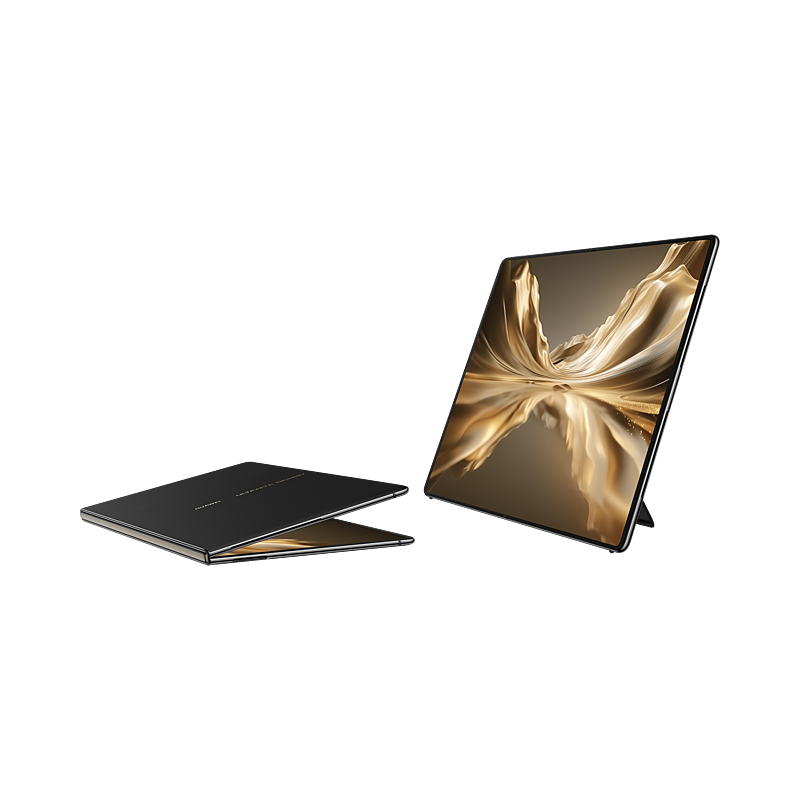

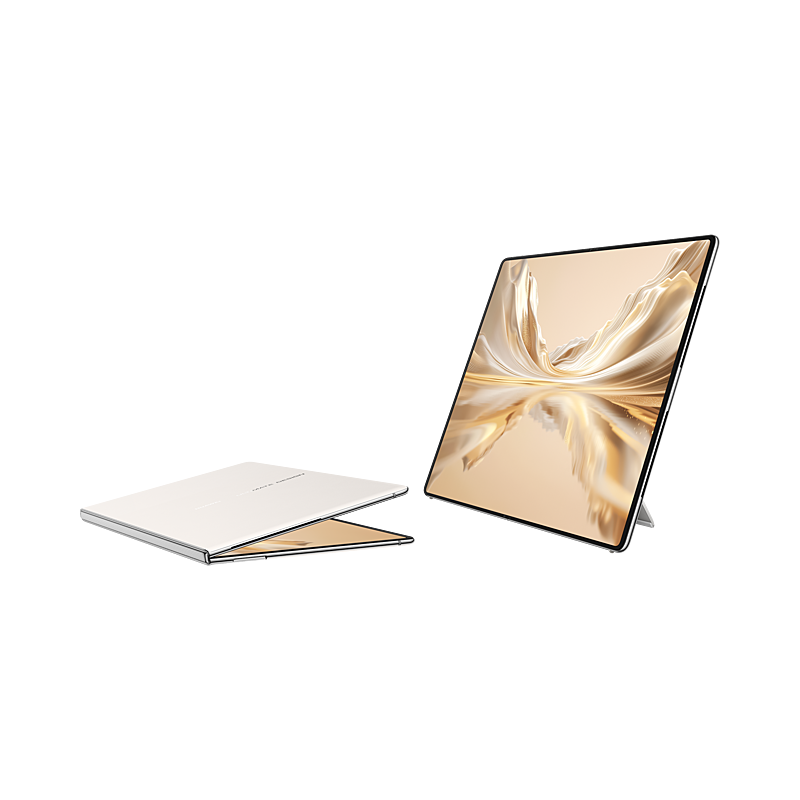

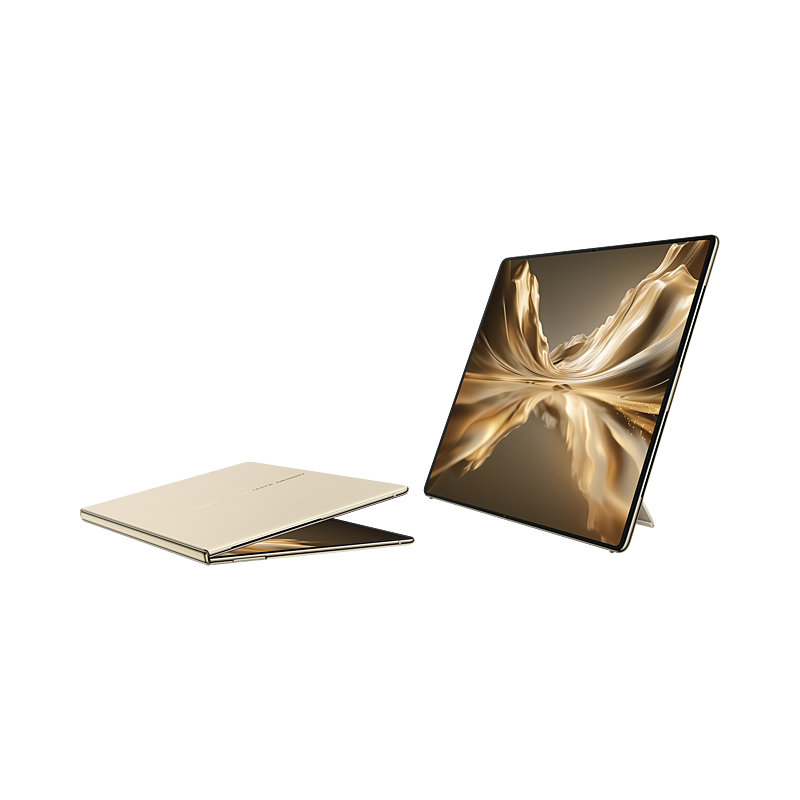

A display for folded and unfolded work

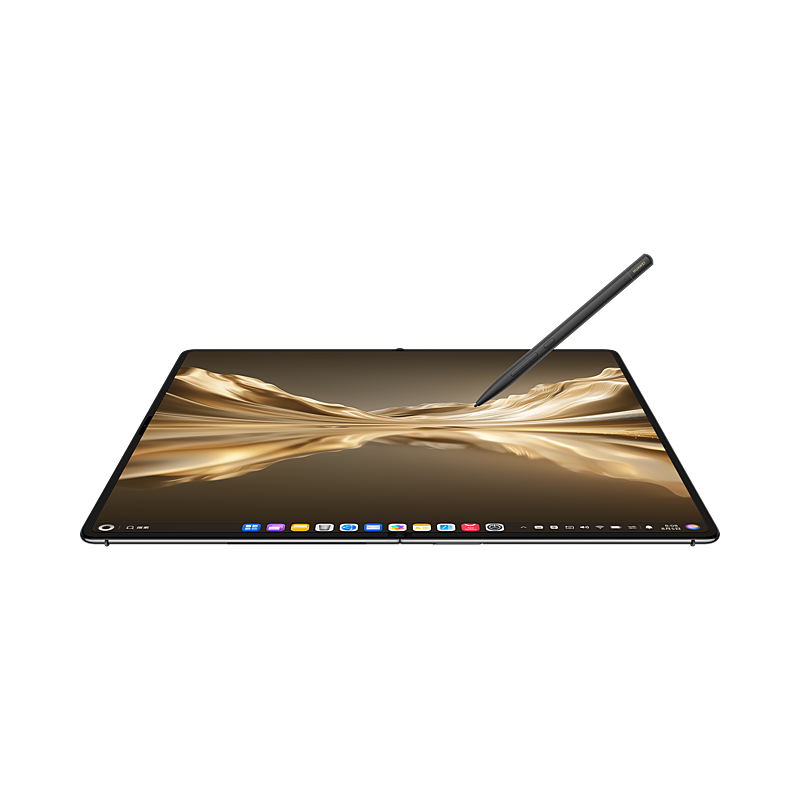

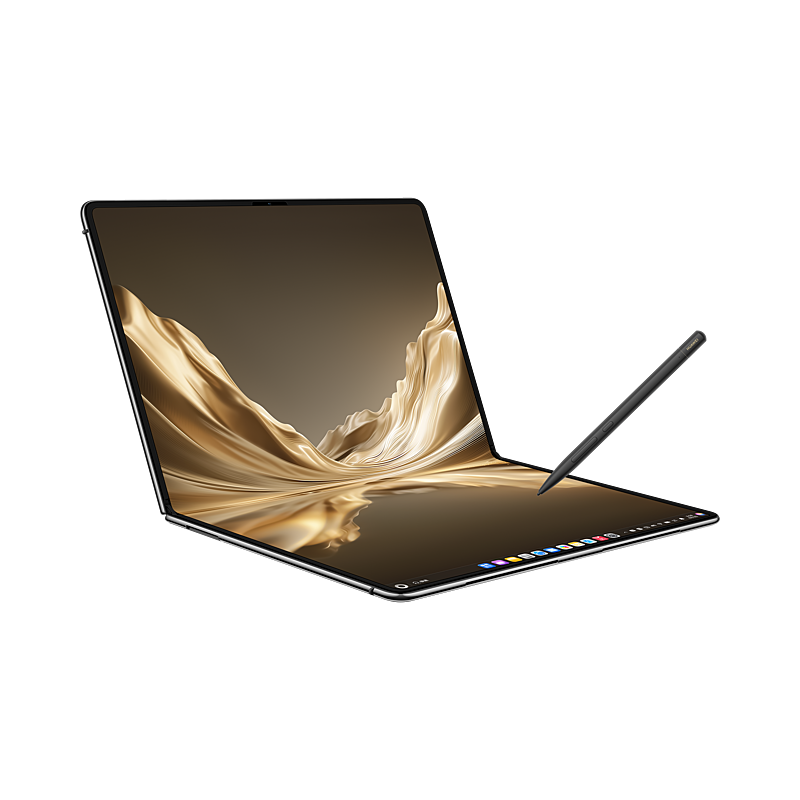

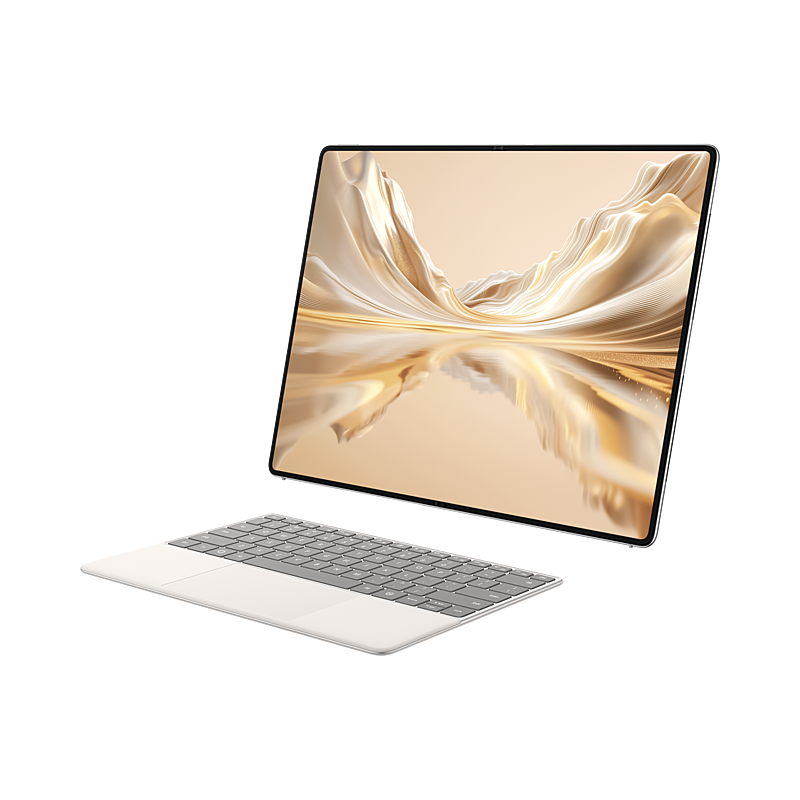

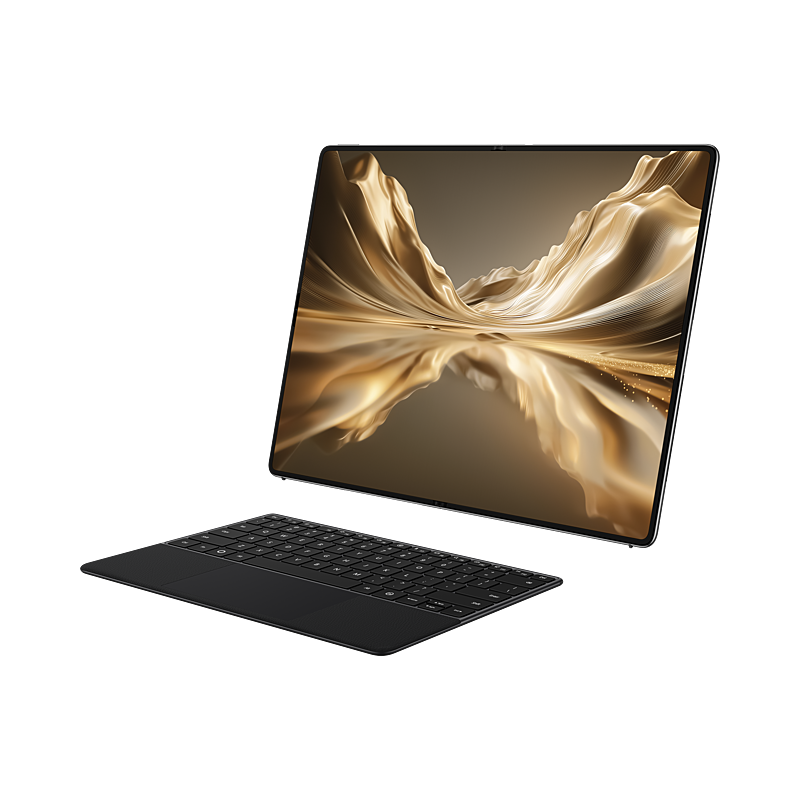

Open the screen to use an 18-inch, 4:3 workspace, or fold it to work across two 13-inch halves. Rounded corners make the usable area slightly smaller than those rectangular measurements. The integrated stand supports an upright screen position with the keyboard placed in front.

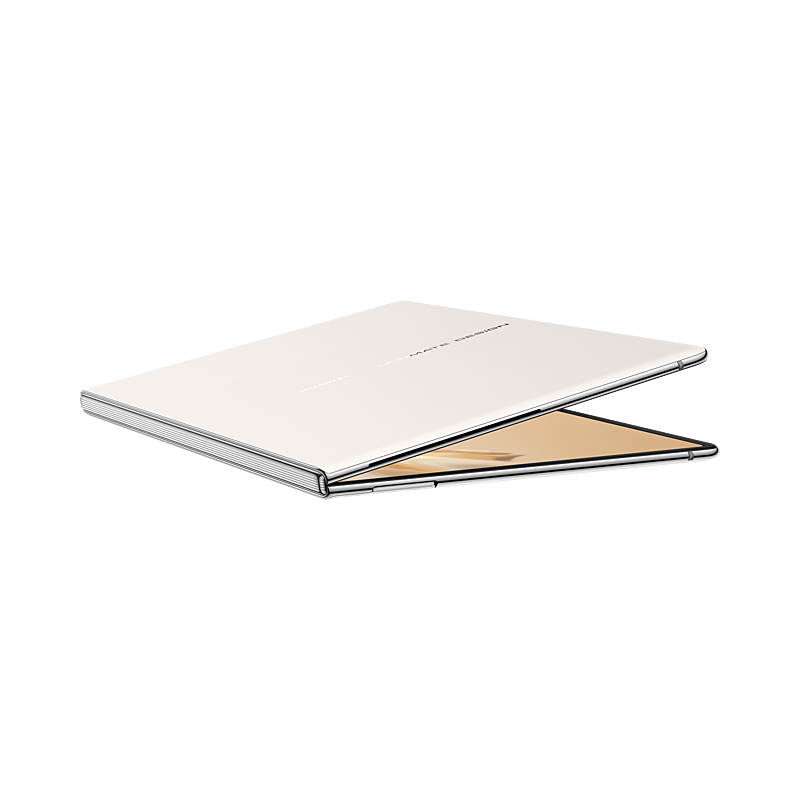

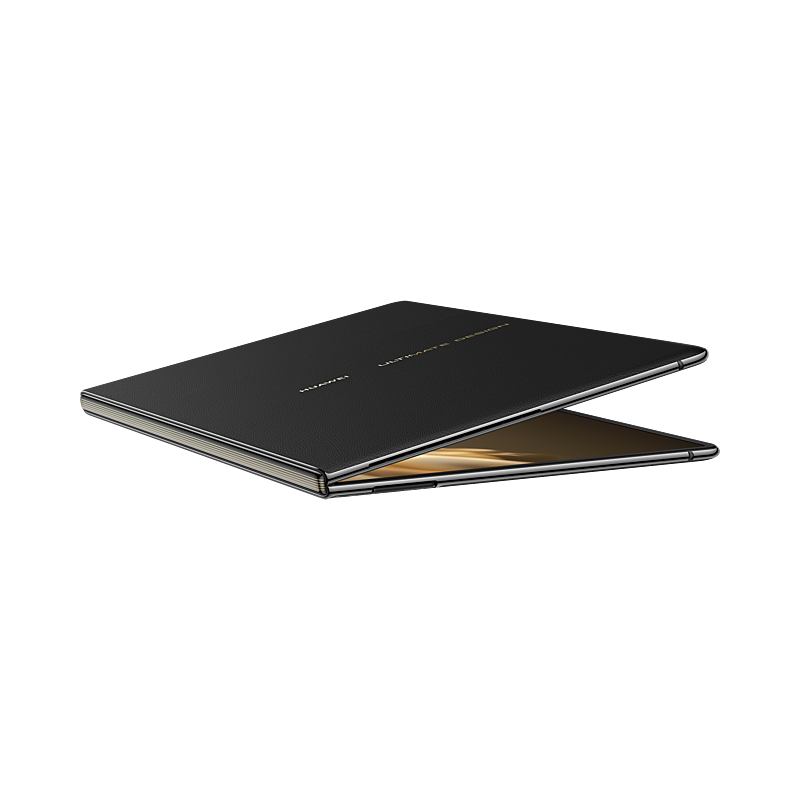

The dual-layer OLED panel provides P3 color and local HDR highlights up to 1600 nits under Huawei laboratory conditions. Typical brightness is 700 nits, and P3 color management depends on the application. The waterdrop hinge supports hovering from 30° to 150°.

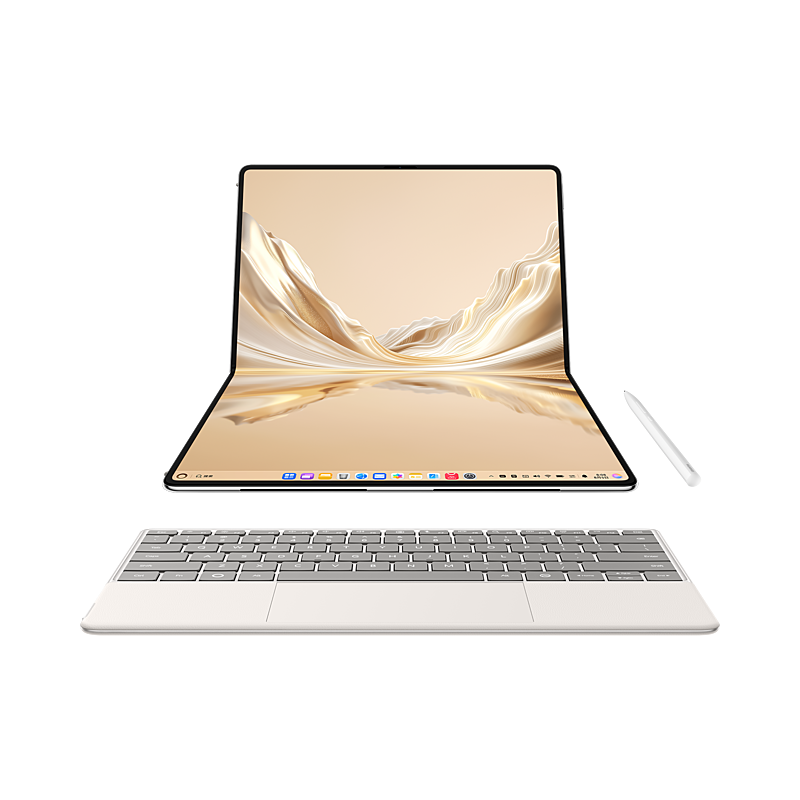

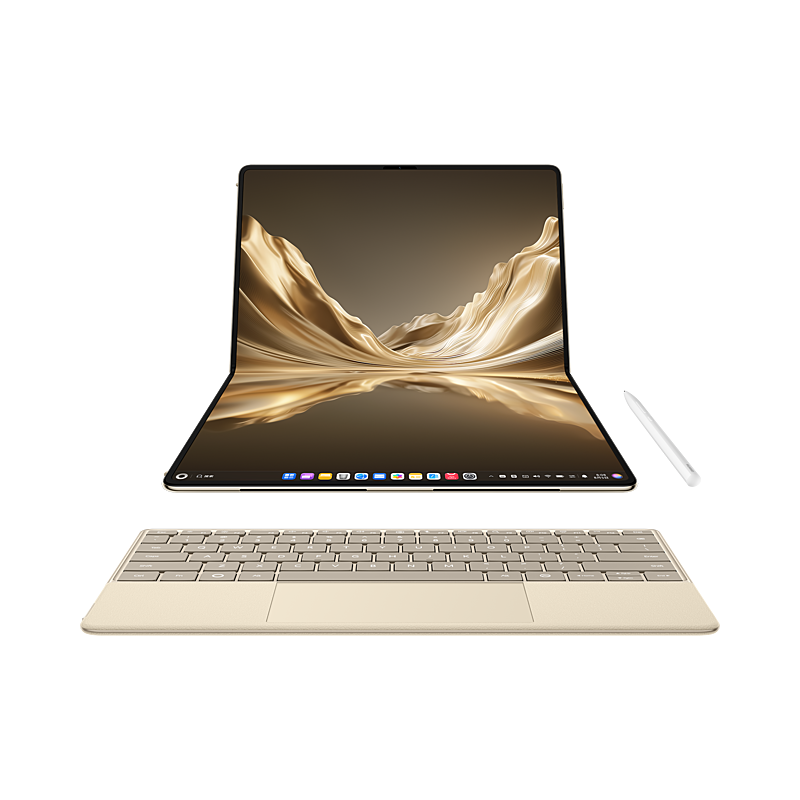

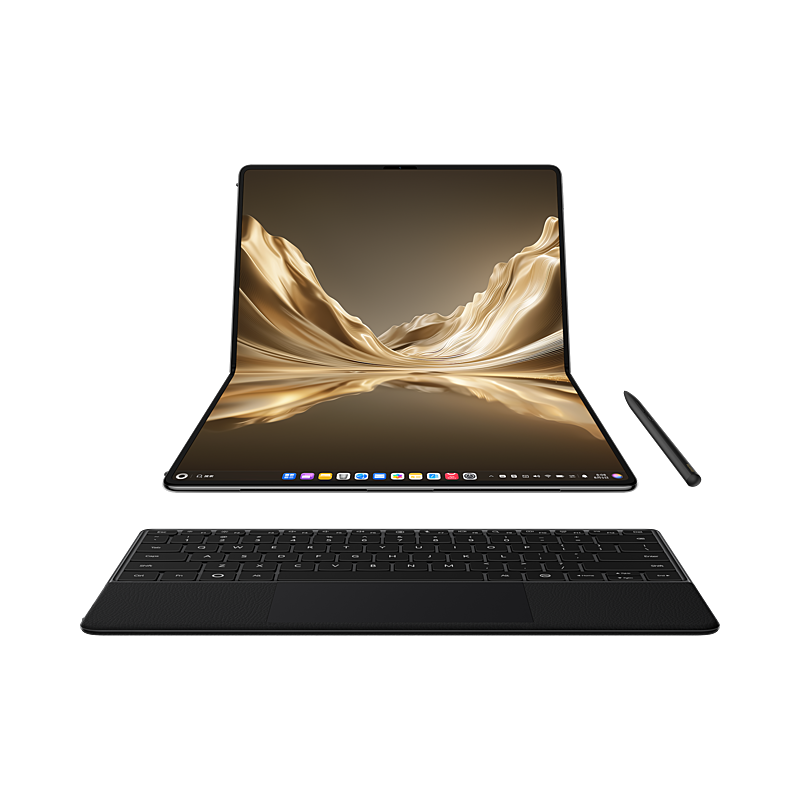

Handwriting alongside a physical keyboard

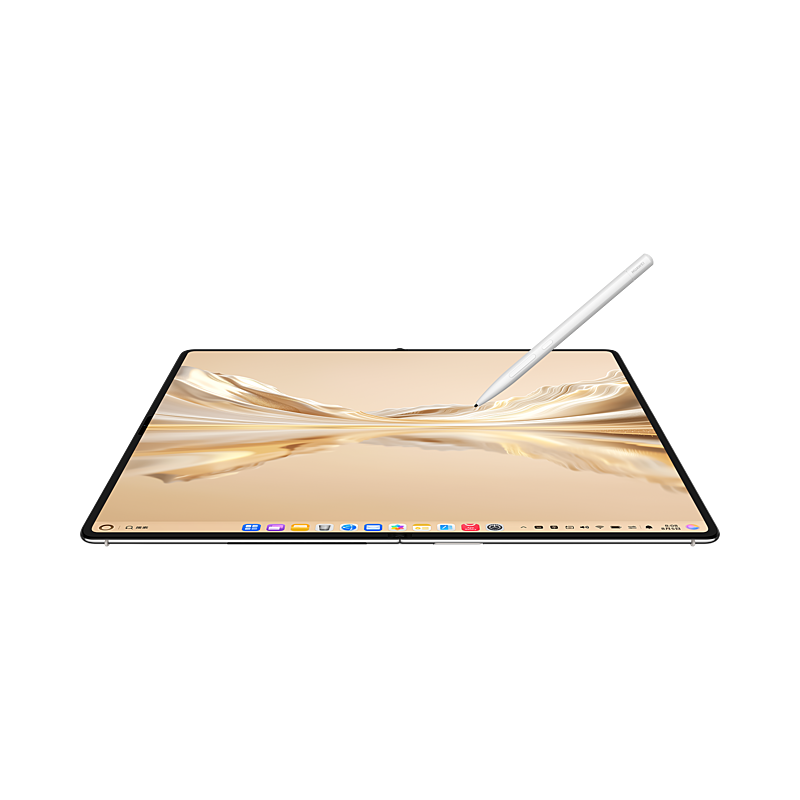

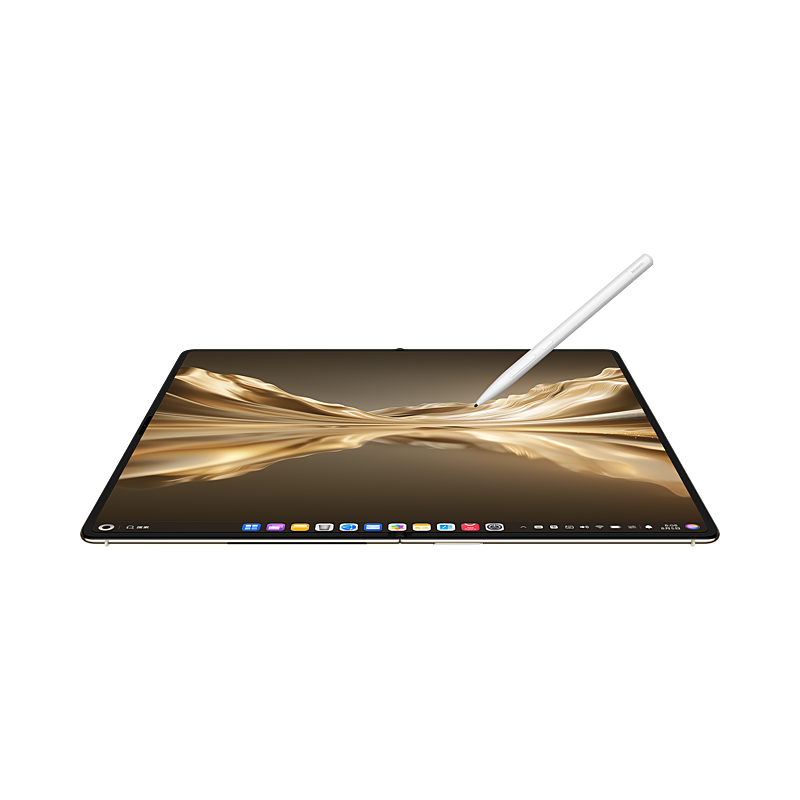

The included HUAWEI M-Pen 3 works with the updated display for handwriting, annotation and drawing in supported applications, including HUAWEI Notes and GoPaint. The pen also offers an air-mouse mode; air page turning works only in supported applications.

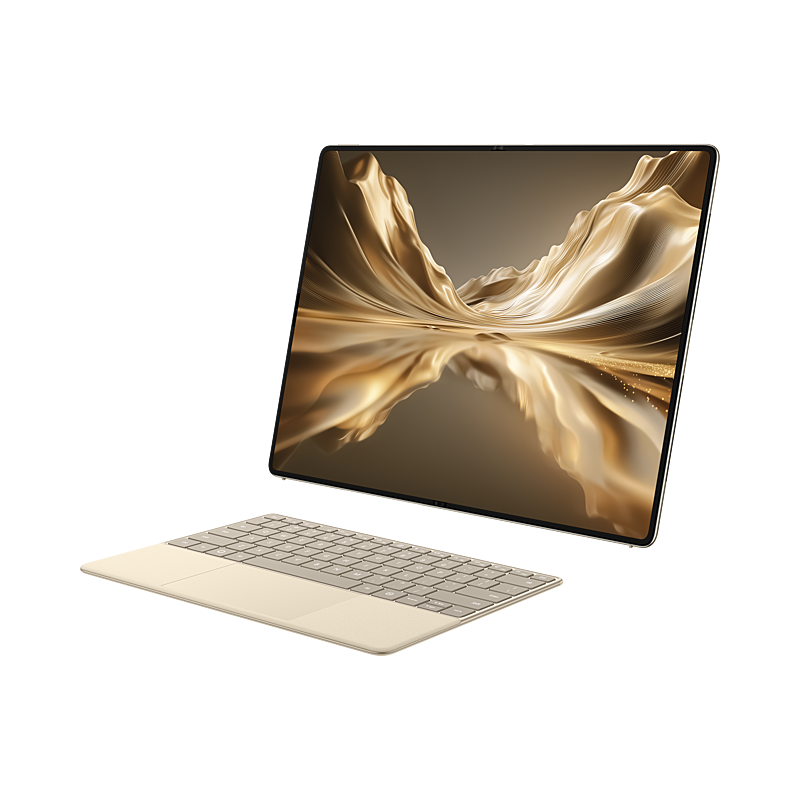

The separate NearLink keyboard has 1.5 mm key travel and a pressure-sensitive touchpad. It can attach magnetically for carrying, and weighs approximately 290 g in addition to the computer. The supplied stylus sleeve and storage bag are part of this package.
Kirin X90 Plus and HarmonyOS
This edition uses the Kirin X90 Plus processor and HarmonyOS 6.1. Choose 24 GB of physical RAM with a 512 GB or 1 TB SSD, or 32 GB of RAM with a 2 TB SSD. System software and formatting reduce the memory and storage available for your files and applications.
HarmonyOS provides its own application ecosystem and Huawei device-collaboration features. Compatibility depends on the application, device and software version; do not assume a Windows application runs natively on this computer. Some advertised features, including Xiaoyi Tasks, require HarmonyOS 7 or later.
USB-C connections and monitor mode
Both USB-C ports support charging, USB 3.2 Gen 1 data and DisplayPort output, but only one port can drive an external display at a time. The left port in unfolded landscape orientation also accepts DisplayPort input up to 3296 × 2472 at 60 Hz, allowing the computer to function as a monitor.
A full-featured USB-C cable is required separately for DisplayPort input or output. The included charging cable supports USB 2.0 data and does not support those display functions. For 5 Gbps transfers, use a cable that supports USB 3.2 Gen 1.
Configurations and regional details

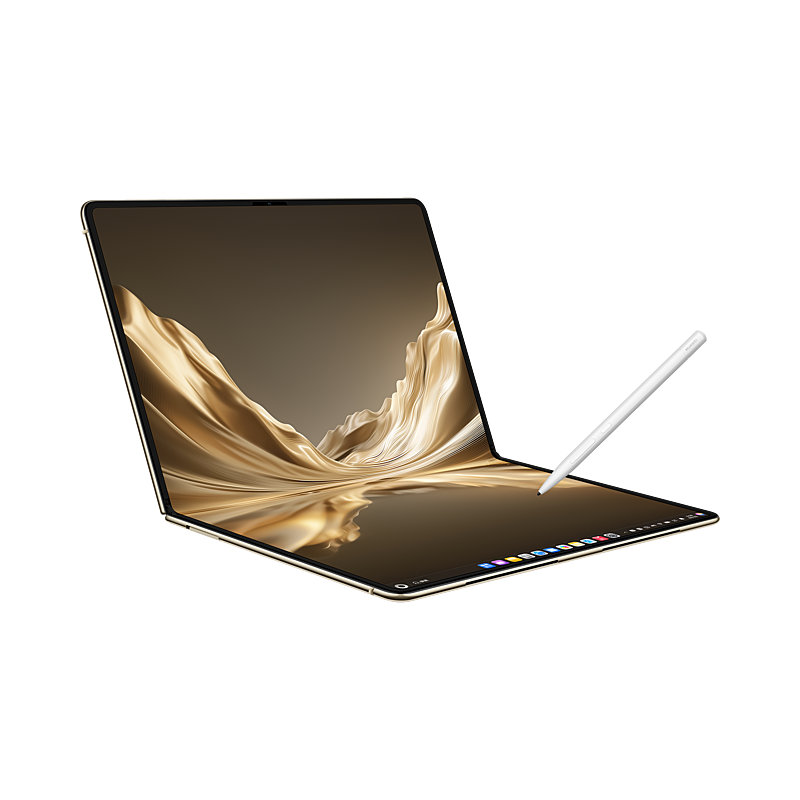

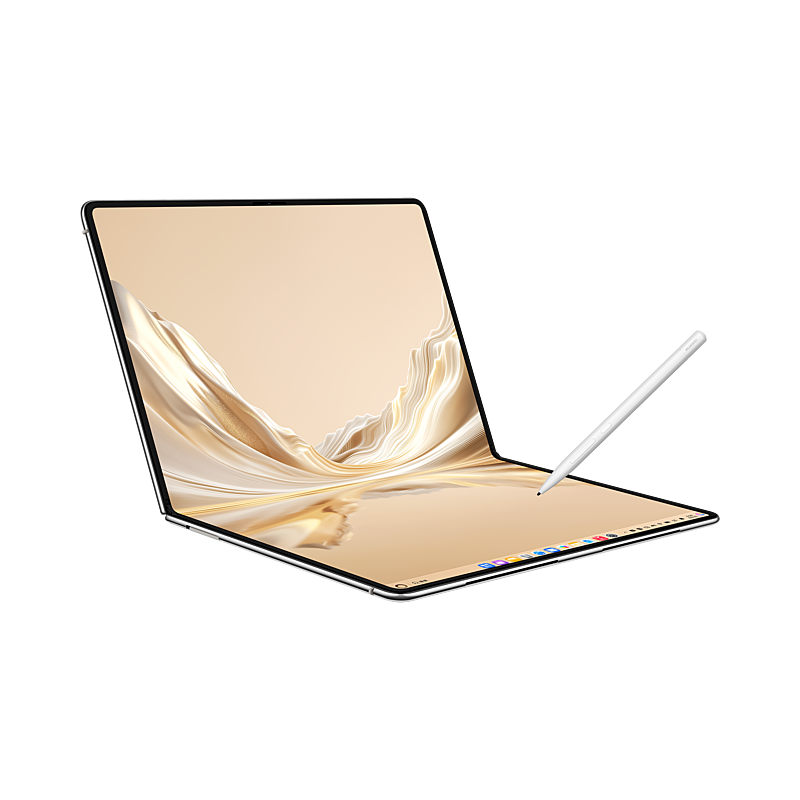

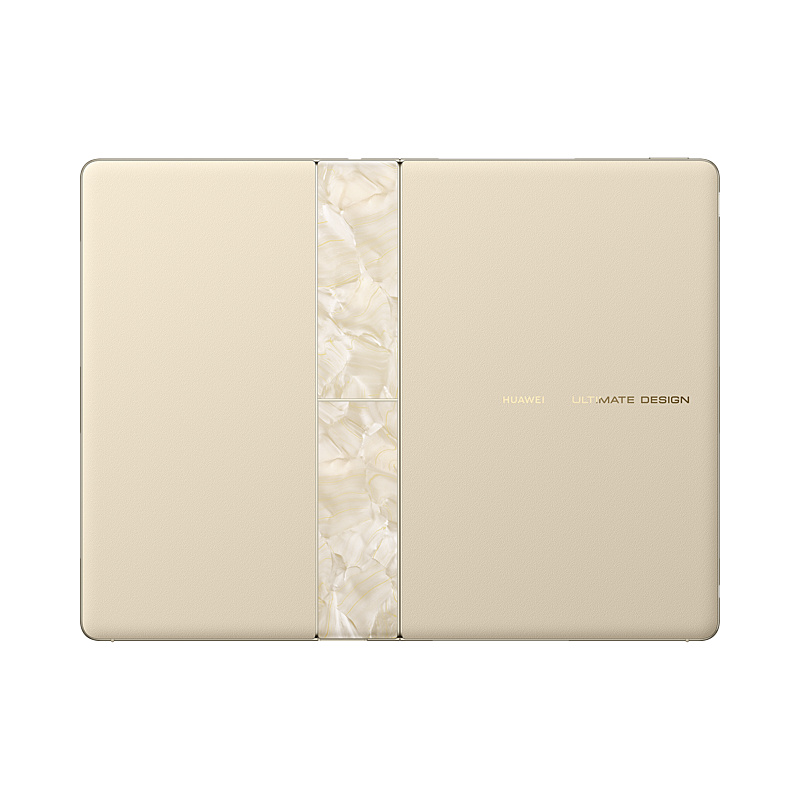

The Storage selector uses RAM first and internal SSD capacity second: 24GB/512GB, 24GB/1TB or 32GB/2TB. Phantom Black and Sky White are offered with 24GB/512GB; all three colors are offered with 24GB/1TB; Phantom Black and Shimmer Gold are offered with 32GB/2TB.
At PDAPlaza, this listing identifies the Chinese-market Kirin X90 Plus generation, including the keyboard and M-Pen 3. System language choices are limited to Simplified Chinese, English, Traditional Chinese, Tibetan and Uyghur. The software and cable requirements above apply across its configurations.
Specifications
Identity and configurations
- Model: HUAWEI MateBook Fold ULTIMATE DESIGN, Kirin X90 Plus edition (CN Version)
- Model codes: SLM-W24: 24GB/512GB and 24GB/1TB; SLM-W32: 32GB/2TB
- 24GB/512GB colors: Phantom Black; Sky White
- 24GB/1TB colors: Phantom Black; Sky White; Shimmer Gold
- 32GB/2TB colors: Phantom Black; Shimmer Gold
- Package version: Mainland-China stylus and keyboard set
Processor, memory and storage
- Processor: Kirin X90 Plus
- Processor power rating: 28 W TDP
- Physical RAM: 24 GB with 512 GB or 1 TB SSD; 32 GB with 2 TB SSD. Available memory is lower because system software uses part of it.
- Internal storage: 512 GB, 1 TB or 2 TB SSD in the configurations listed above; formatted capacity is lower than nominal capacity.
Display
- Panel: Flexible dual-layer OLED with UTG ultra-thin glass
- Screen size: 18 inches unfolded; 13 inches for each half when folded. Diagonals are measured as rectangles; rounded corners reduce the visible area.
- Resolution: 3296 × 2472 unfolded; 2472 × 1648 per half when folded. Rounded corners slightly reduce the effective pixel area.
- Aspect ratio: 4:3 unfolded; 3:2 per folded half
- Screen-to-body ratio: 92%, measured by Huawei laboratories
- Brightness: 700 nits typical; up to 1600 nits local peak with HDR content, measured by Huawei laboratories
- Color gamut: P3 wide color gamut; color management depends on the application
- Contrast: 2,000,000:1 in HDR mode; 1,000,000:1 in normal mode; typical Huawei laboratory values
- Colors and pixel density: 1.07 billion colors; 229 ppi
- Touch input: Up to 10-point multitouch; HUAWEI M-Pen 3 support
- Eye comfort: Eye comfort mode; TÜV Rheinland Eye Comfort 3.0 certification
Dimensions and construction
- Unfolded dimensions: 382.5 × 288.5 mm; thickness 7.6 mm on the camera-side half and 7.3 mm on the opposite half
- Closed dimensions: 288.5 × 193.7 × 14.9 mm
- Computer weight: Approximately 1.16 kg including the battery, excluding the keyboard
- Keyboard dimensions and weight: Approximately 5 mm thick and 290 g

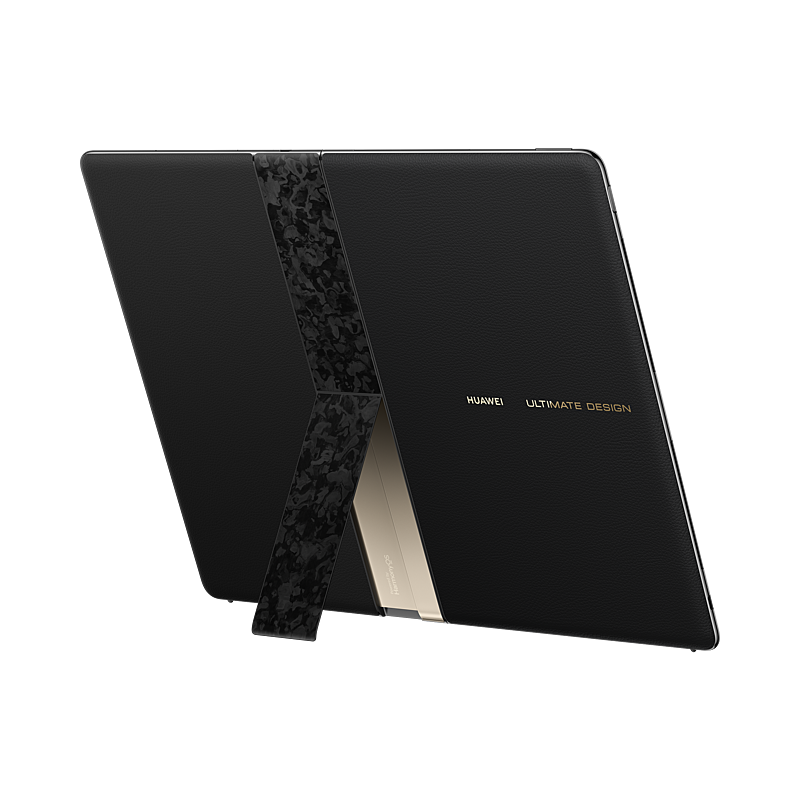

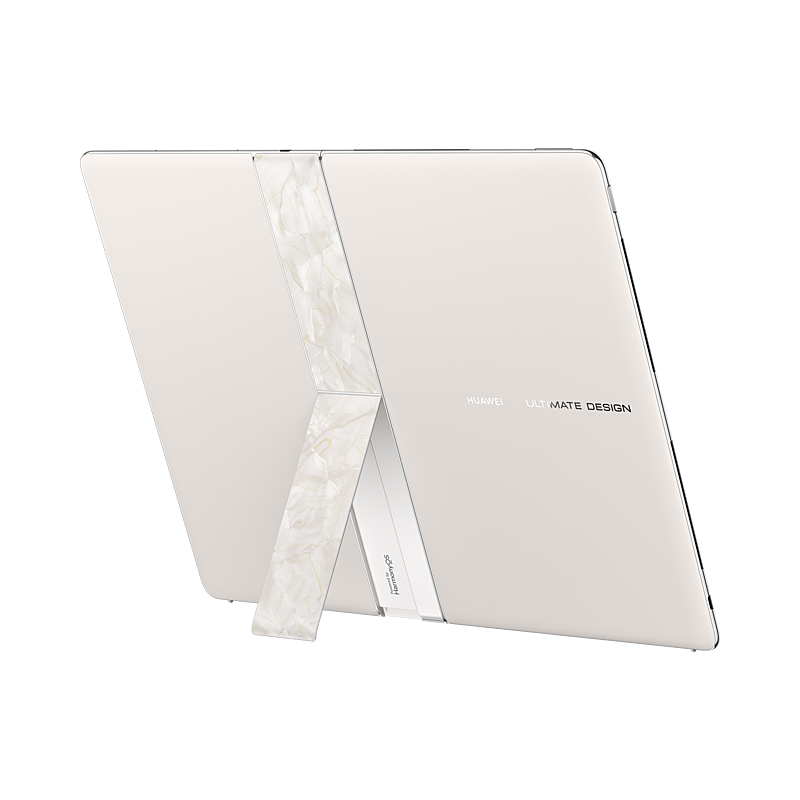

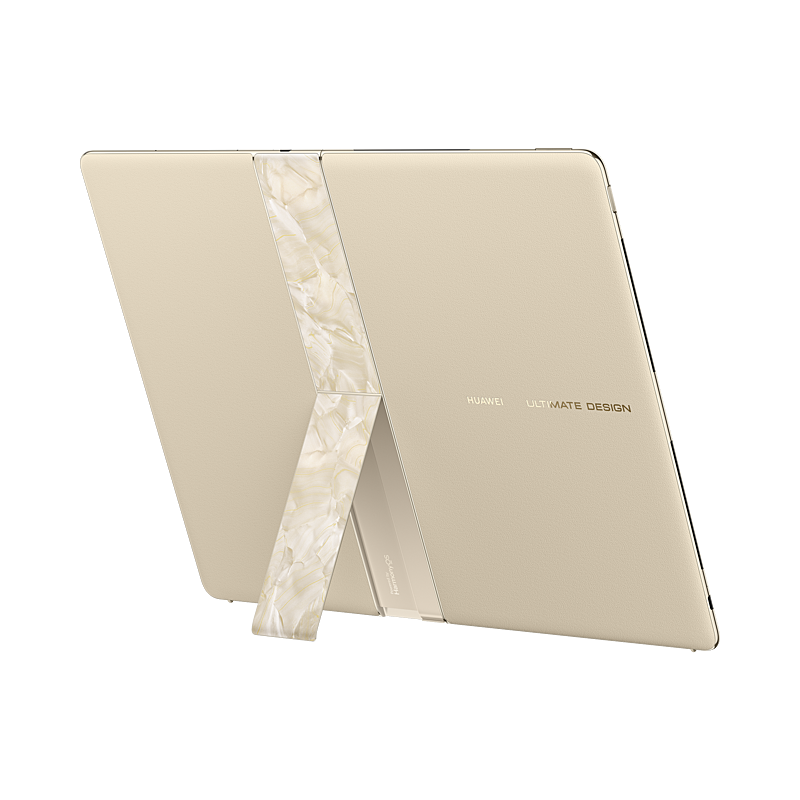

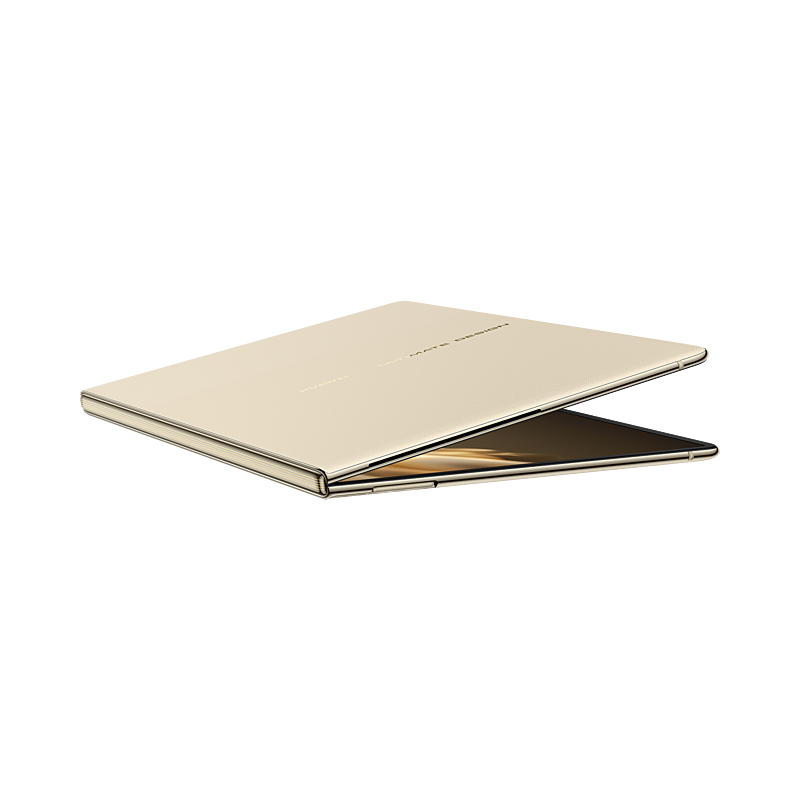

- Hinge and support: Waterdrop hinge with a supported hovering range of 30°–150° and an integrated stand. After extended closed storage, the display may initially unfold slowly; Huawei states that resting it unfolded restores the normal state.
Wireless connectivity
- Wi-Fi: Wi-Fi 6; IEEE 802.11a/b/g/n/ac/ax; 160 MHz; 2.4 GHz and 5 GHz; 2 × 2 MIMO. A compatible router is required for supported Wi-Fi capabilities.
- Wi-Fi security: WPA, WPA2 and WPA3
- Bluetooth: Bluetooth 5.2
- NearLink: NearLink E1.0; wireless keyboard and stylus connectivity
Battery and power
- Battery: Lithium polymer; rated 74.69 Wh (6400 mAh at 11.67 V)
- Included power adapter: HUAWEI SuperCharge power adapter, black, maximum 140 W
Ports and external displays
- USB-C locations: Two ports: in the folded position with the camera at the top, one on the right and one on top. In the unfolded landscape position, one is on top and one is on the left.
- Upper USB-C port, unfolded: Charging input; USB 3.2 Gen 1 data up to 5 Gbps; DisplayPort 1.2 output up to 4K at 60 Hz. Supplies up to 66 W (20 V/3.3 A) while the computer is shut down or asleep.
- Left USB-C port, unfolded: Charging input; USB 3.2 Gen 1 data up to 5 Gbps; DisplayPort 1.2 output up to 4K at 60 Hz; DisplayPort input up to 3296 × 2472 at 60 Hz; power output up to 10 W (5 V/2 A).
- Display and cable requirements: Only one USB-C port can drive an external display at a time. DisplayPort input and output require a separately obtained full-featured USB-C cable. The included USB-C cable supports USB 2.0 and does not support monitor mode or DisplayPort output; USB 3.2 Gen 1 speeds require a compatible cable.
- Headphones: USB-C digital headphones supported; USB-C analog headphones are not supported. Other headphones require the HUAWEI USB-C to 3.5 mm digital audio adapter.
Keyboard, controls and sensors
- Keyboard: HUAWEI portable keyboard with NearLink wireless connectivity and 1.5 mm key travel
- Touchpad: Pressure-sensitive touchpad; supports 5-point touch
- Buttons: Fingerprint power button; volume button
- Sensors: Gravity sensor, gyroscope, fingerprint sensor and Hall sensor
Camera and audio
- Camera: 8 MP front camera; photo and video resolution varies by mode
- Speakers: Six speakers: three rated at 2 W and three rated at 1 W; HUAWEI SOUND
- Microphones: Four microphones
Software and regional details
- Operating system: HarmonyOS 6.1; Huawei OTA system updates supported. Some promoted features require HarmonyOS 7 or later.
- System languages: Simplified Chinese, English, Traditional Chinese, Tibetan and Uyghur
- Applications and features: HUAWEI Notes; GoPaint; Xiaoyi meeting notes, deep research, smart search and input method; standby screensaver; monitor mode; mobile spatial audio; file manager; gallery; MeeTime; memo; calendar; AI Life; My HUAWEI; HUAWEI Cloud; AppGallery; HUAWEI Share; app continuity; keyboard and mouse sharing; cross-device clipboard; Super Device; tap-to-share; communication sharing; wireless projection; wired projection.
- Cross-device prerequisites: Supported Huawei devices only. Keyboard/mouse sharing and related collaboration require applicable HarmonyOS 5 or later devices, the same HUAWEI account, Wi-Fi and Bluetooth enabled. Tap-to-share requires compatible HarmonyOS 6 or later devices and the same account; Huawei Enjoy devices are excluded.
- Additional feature requirements: Xiaoyi Tasks requires HarmonyOS 7 or later. Air page turning is limited to supported applications. Video HDR enhancement must be enabled in display settings and varies by application. Mobile spatial audio requires a compatible HUAWEI FreeClip series headset.
In the box
- Foldable computer: 1
- Black HUAWEI SuperCharge power adapter (maximum 140 W): 1
- Black braided USB-C power cable: 1
- HUAWEI portable keyboard: 1
- Screen cleaning cloth: 1
- Reminder card: 1
- HUAWEI M-Pen 3: 1
- Spare pen tip: 1
- Pen-tip removal tool: 1
- Stylus sleeve: 1
- HUAWEI foldable-computer storage bag: 1
- Computer quick-start guide: 1
- Stylus quick-start guide: 1
