HUAWEI Mate 90 RS ULTIMATE DESIGN CMU-AL10 (CN Version)

HUAWEI Mate 90 RS ULTIMATE DESIGN CMU-AL10 (CN Version)

Important Notice: This is a Chinese-market Huawei model. It supports all major system languages; however, it does not support Google Mobile Services (GMS), including the Google Play Store. Please consider this compatibility limitation before purchasing.

This Chinese-market smartphone combines a dual-layer 6.9-inch OLED display, a variable-aperture main camera and a 200 MP telephoto camera with Kirin 9050 Pro and HarmonyOS 7.0. PDAPlaza offers the model with 16 GB of RAM and a choice of internal storage and colors. Regional software, carrier and satellite-service requirements are explained below.

Key features

• 6.9-inch dual-layer OLED display with a 1–120 Hz LTPO adaptive refresh rate and BT.2020 color gamut.
• 50 MP main camera with f/1.4–f/4.0 variable aperture and OIS, plus a 200 MP telephoto camera; 200 MP mode works at the 4× setting.
• Kirin 9050 Pro processor and HarmonyOS 7.0, with 16 GB of RAM across all configurations.
• 6800 mAh typical battery with up to 100 W wired and 50 W wireless Huawei SuperCharge using the required compatible equipment.
• Polished titanium frame, Xuanwu Kunlun display glass and IP68/IP69 ratings under the specified test conditions.
• Two nano-SIM slots and eSIM support; four stored numbers and three on standby require operator support, a HOTA update and the stated mainland-China carrier condition.

A dual-layer display with adaptive refresh

The dual-layer OLED panel adjusts its refresh rate from 1 to 120 Hz and displays 1.07 billion colors within the BT.2020 gamut. Its 2848 × 1320 resolution, 300 Hz touch sampling and 1440 Hz PWM dimming provide a detailed reference for viewing and interaction. Xuanwu Kunlun Glass covers the display.

Huawei reports a peak brightness of 12,000 nits measured at 1% APL in its laboratory. This is a small-area peak measurement, and actual brightness depends on the environment; it is not a typical or full-screen brightness value.

Variable-aperture imaging and a 200 MP telephoto camera

The 50 MP main camera changes aperture from f/1.4 to f/4.0 and includes optical image stabilization. A 40 MP ultrawide camera and a 200 MP telephoto camera with OIS and telephoto macro extend the shooting options, while the third-generation Red Maple color-sensing camera supports color capture. The phone offers approximately 4× optical zoom and 8× optical-quality zoom; 200 MP high-pixel capture is available only at the 4× setting.

RAW photos, Log video, HDR Vivid video and Pro mode give you additional capture formats and controls. The optional Huawei XMAGE Z10 modular camera has its own 1-inch sensor and 10× continuous optical zoom across a 24–240 mm range. That module and its professional control grip are sold separately, and their capabilities are separate from the phone’s built-in cameras.

Battery capacity and compatible charging

The built-in battery is rated at 6615 mAh, with a typical capacity of 6800 mAh. Wired Huawei SuperCharge reaches up to 100 W with a compatible 100 W Huawei SuperCharge kit. Wireless Huawei SuperCharge reaches up to 50 W with a separately purchased compatible Huawei upright or car charger and the specified Huawei SuperCharge kit rated at least 66 W; actual charging power depends on conditions.

At PDAPlaza, the RAM and storage choices are labeled 16GB/512GB, 16GB/1TB and 16GB/2TB: the first capacity is RAM, and the second is internal storage. All three configurations are offered in Rui Red, Bright White and Dark Black. Usable internal storage is lower than the stated capacity because system software occupies space, and memory card expansion is not supported.

China-market communication and outdoor tools

Two nano-SIM slots and support for two stored eSIM numbers allow up to four numbers on one phone. Three numbers can be used simultaneously, subject to a HOTA update and operator support; at least two of those three numbers must belong to the same mainland-China operator. Compatible devices running HarmonyOS 7 or later can share communication capacity across up to four devices.

Tiantong satellite communication requires the appropriate operator service. BeiDou satellite messaging and weather features are limited to mainland China, excluding Hong Kong, Macao and Taiwan, and need activation and an open, unobstructed location. Outdoor exploration includes cycling and hiking routes and watch-assisted emergency calling; the rescue functions require HOTA support, a compatible watch with Huawei Health, and supported device and software versions.

Titanium construction, software and configuration choices

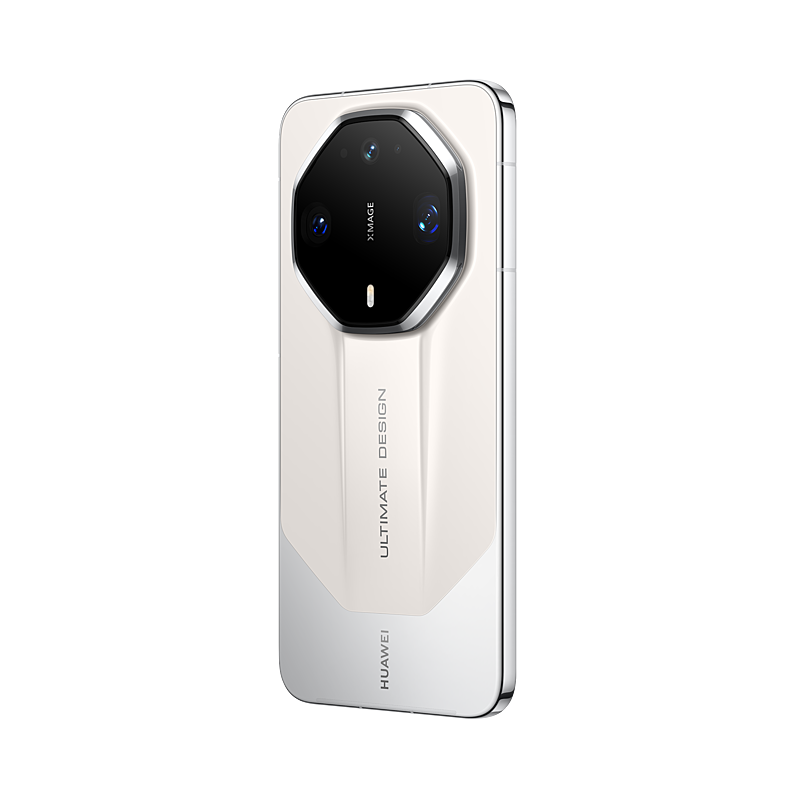

A polished titanium frame, dynamic grating Kunlun Glass rear cover, climbing-pattern detailing and star-diamond design give the phone its distinctive construction. The Xuanwu structure also incorporates optical Kunlun Glass, while the device weighs approximately 248 g including its battery. Drop damage remains possible, and its IP68/IP69 protection can decline with wear; do not charge the phone while it is wet.

HarmonyOS 7.0 runs on Kirin 9050 Pro, with dual-chip protection for privacy and security. The side fingerprint sensor and 3D face recognition provide biometric identification options. Review the Chinese-market Google-services notice above and the regional communication requirements when choosing this edition.

Specifications

Identity and configurations

• Commercial model: HUAWEI Mate 90 RS ULTIMATE DESIGN; Huawei Mate series.
• Device model and market: CMU-AL10; CN Version for mainland China. This common device model code applies to the listed configurations.
• RAM: 16 GB for every configuration.
• Internal storage: 512 GB, 1 TB or 2 TB. Usable capacity is lower because system software occupies space; memory card expansion is not supported.
• Storage selector labels: 16GB/512GB, 16GB/1TB and 16GB/2TB. The first capacity is RAM, and the second is internal storage.

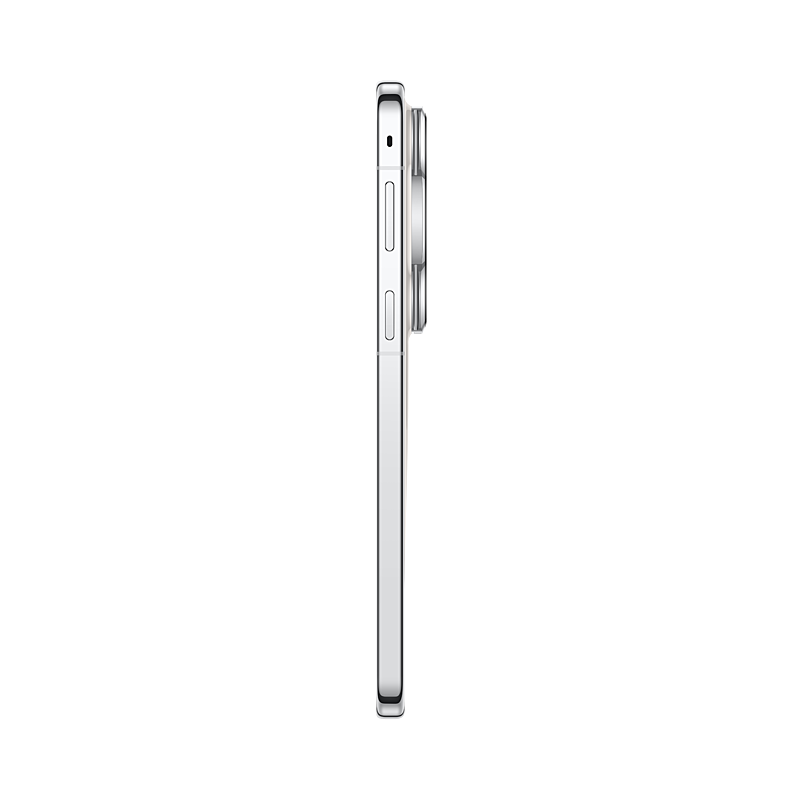

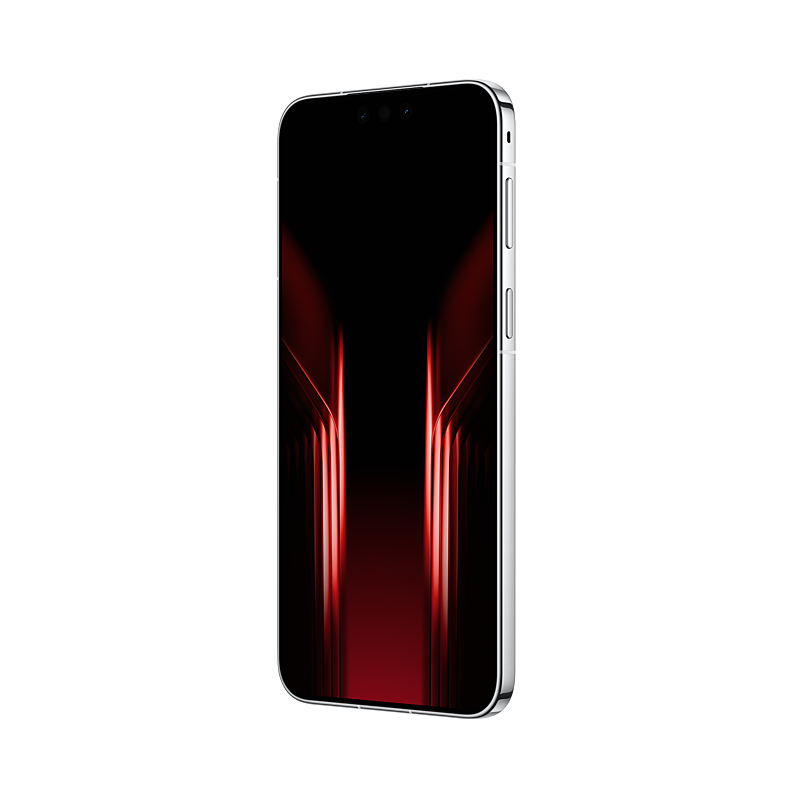

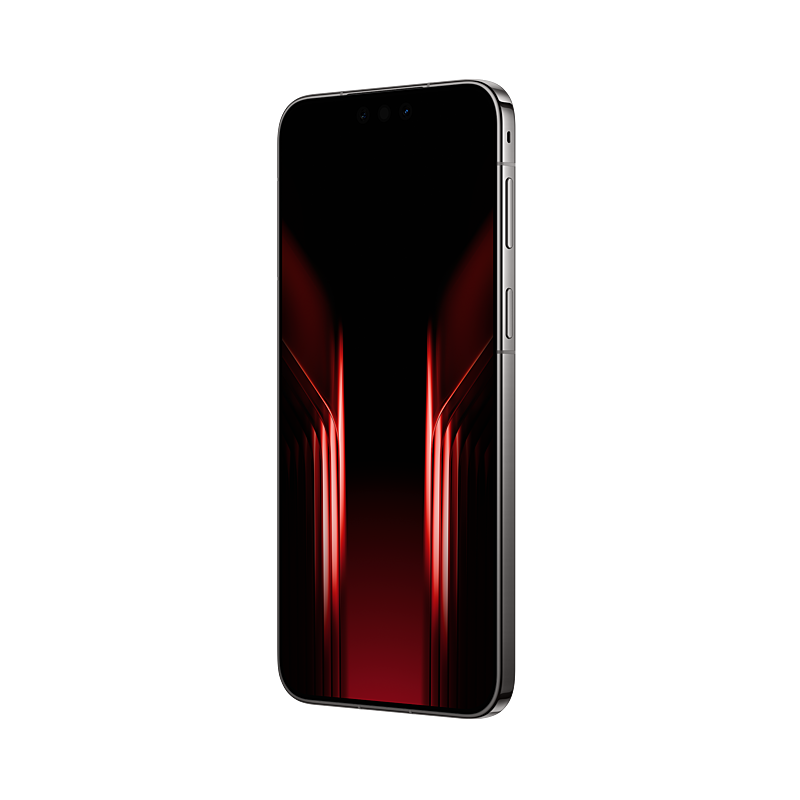

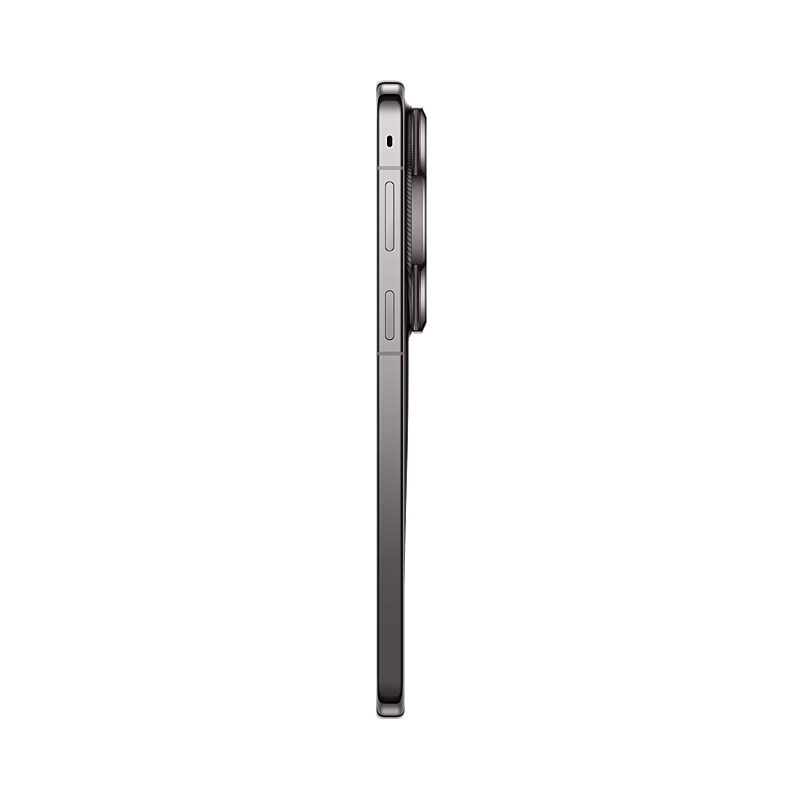

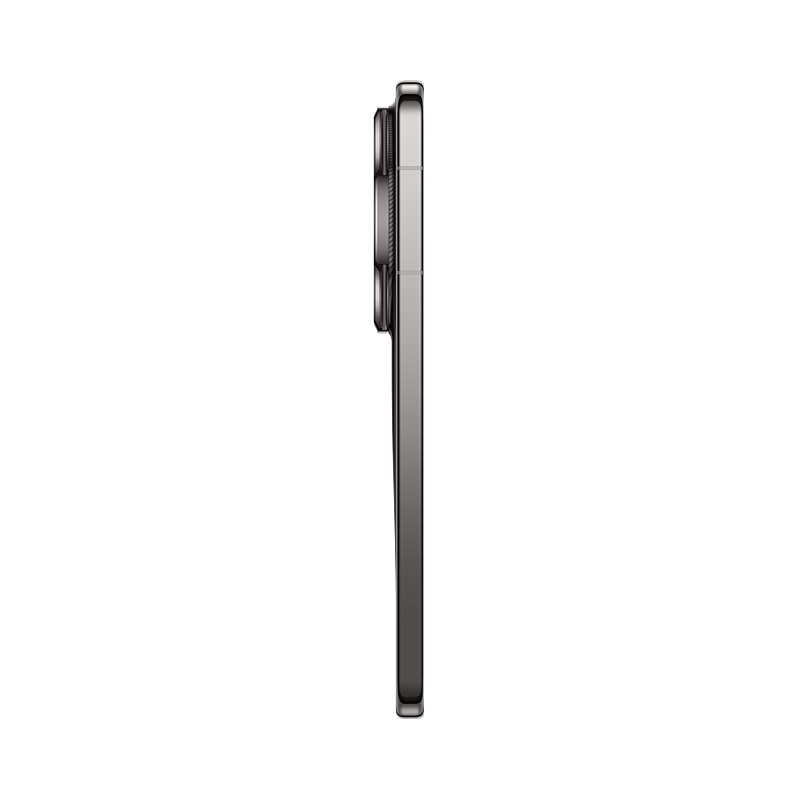

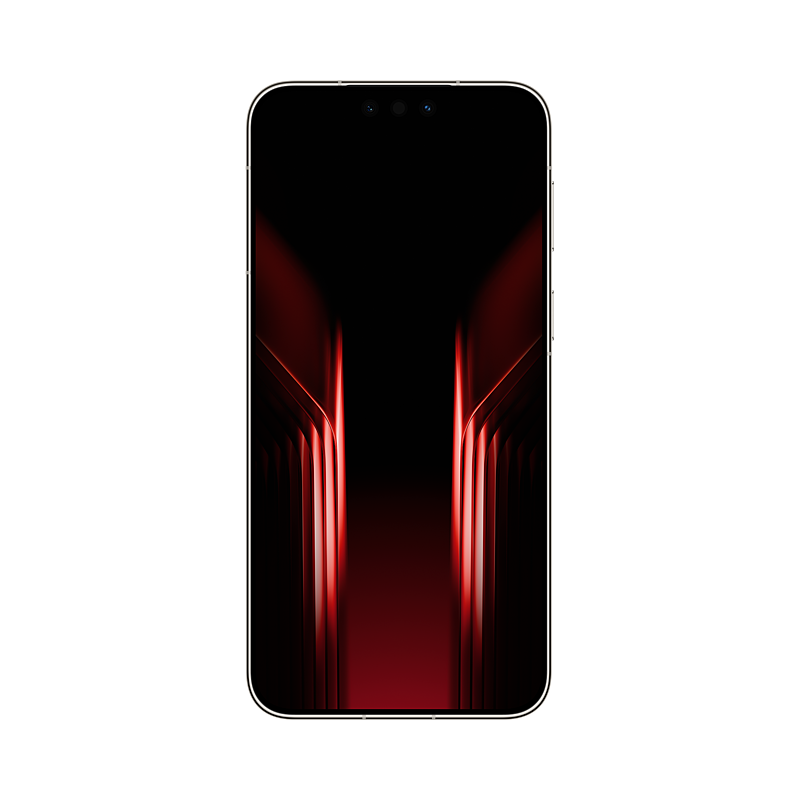

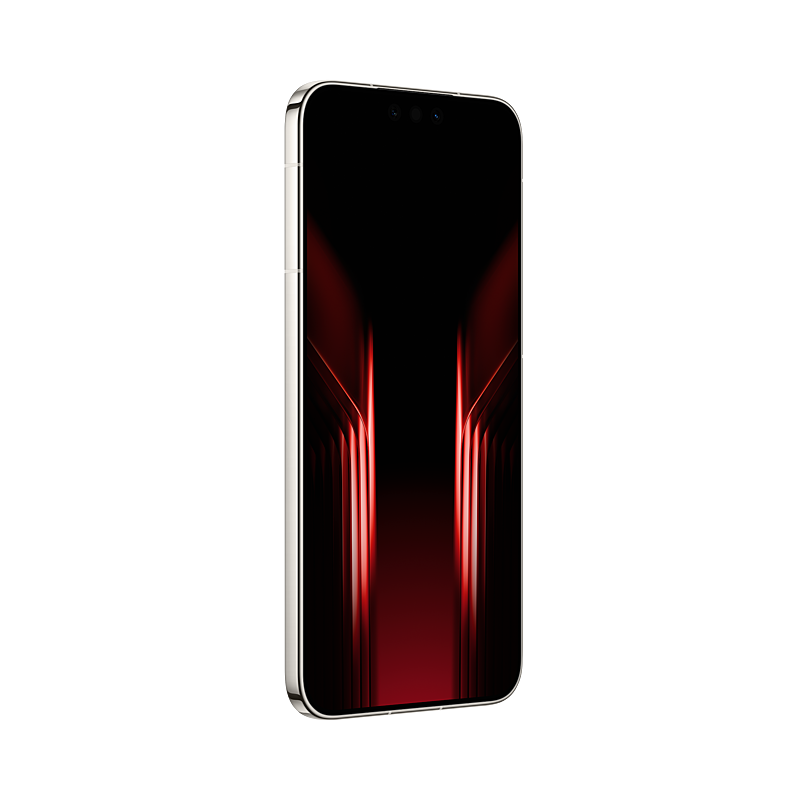

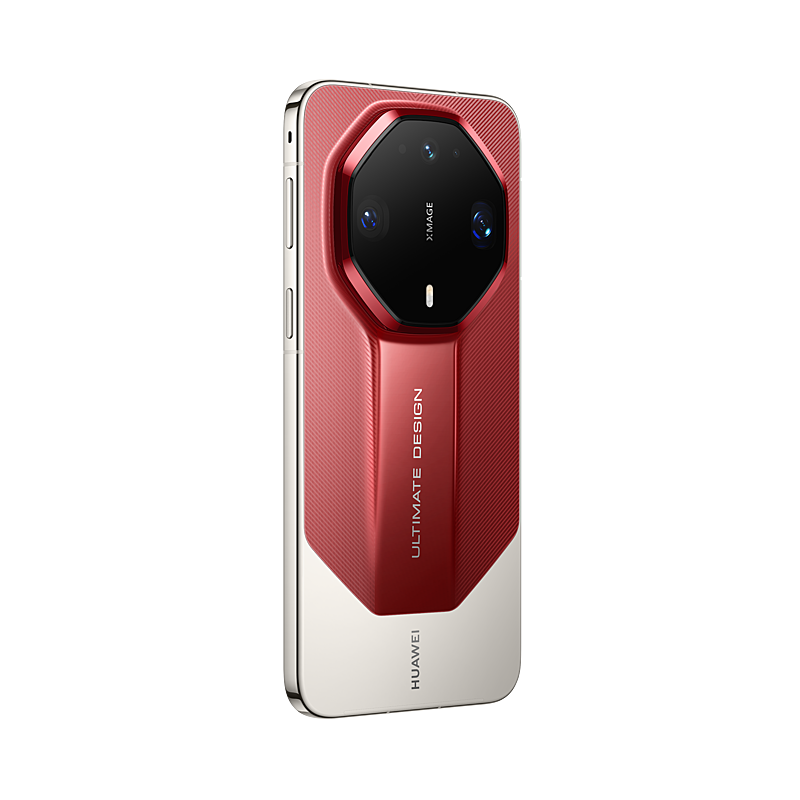

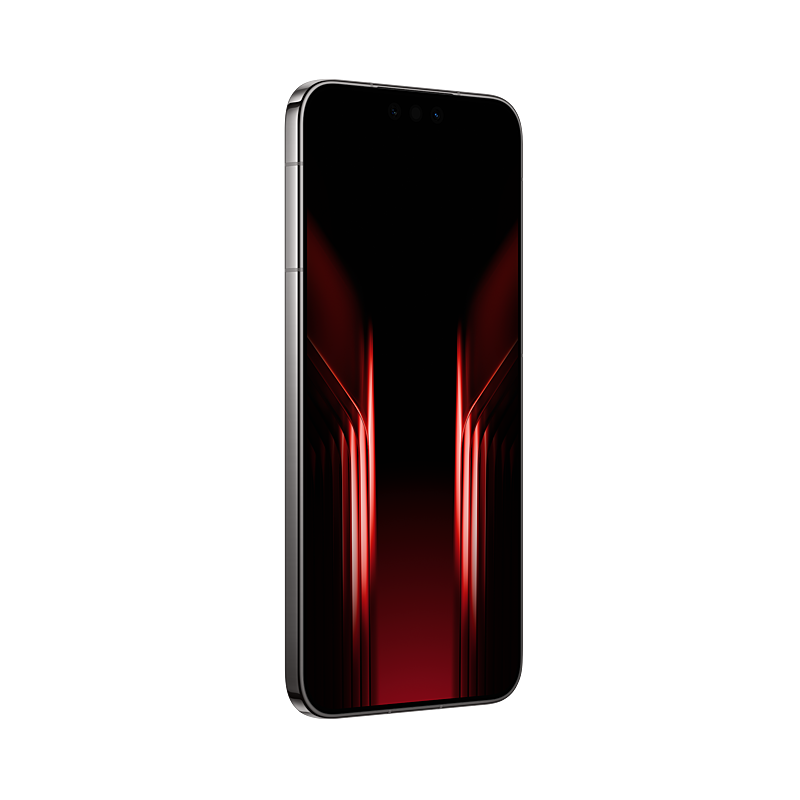

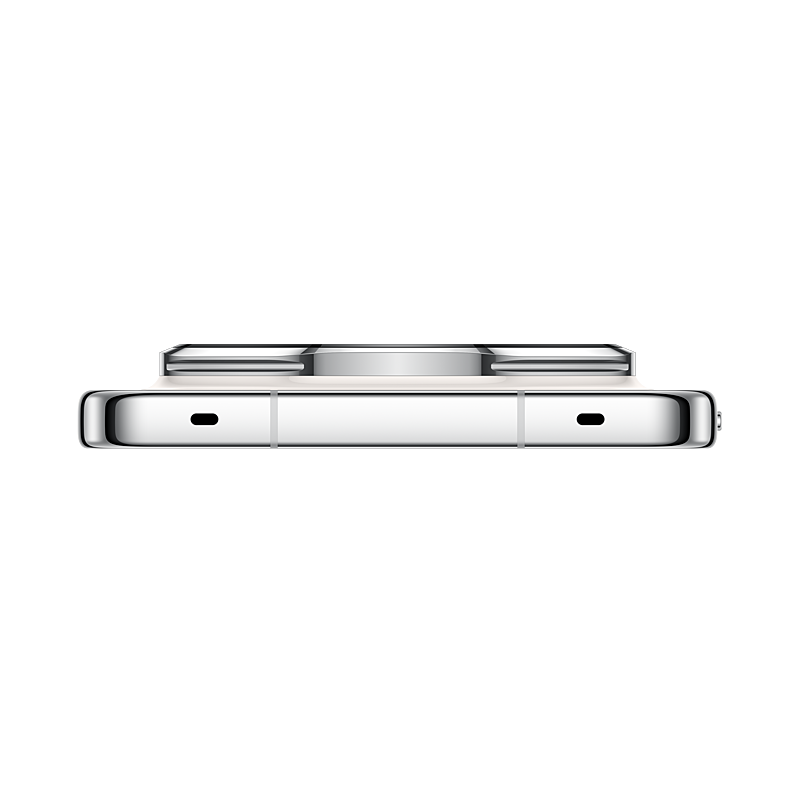

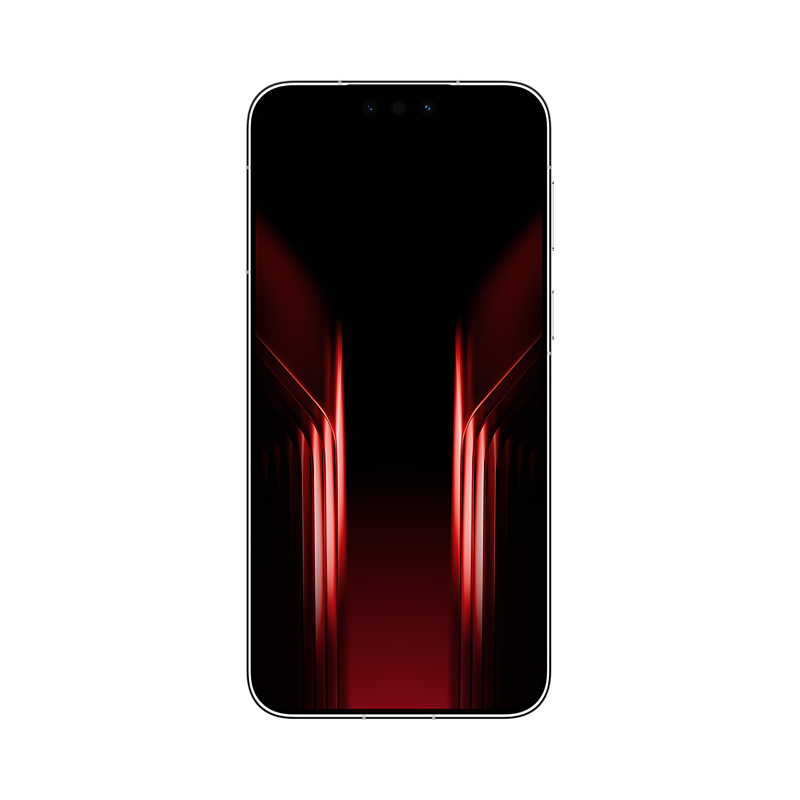

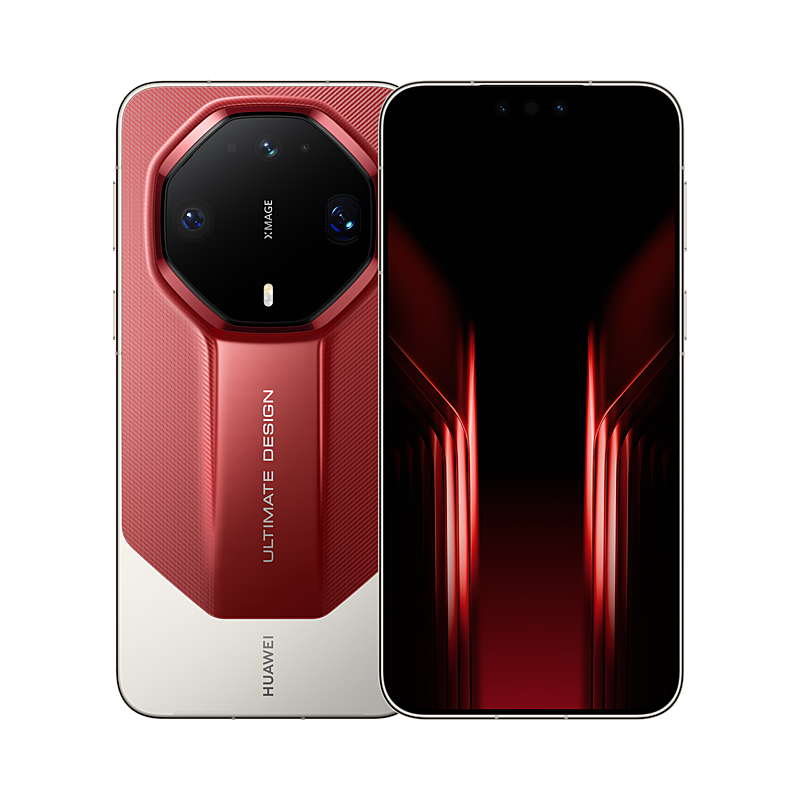

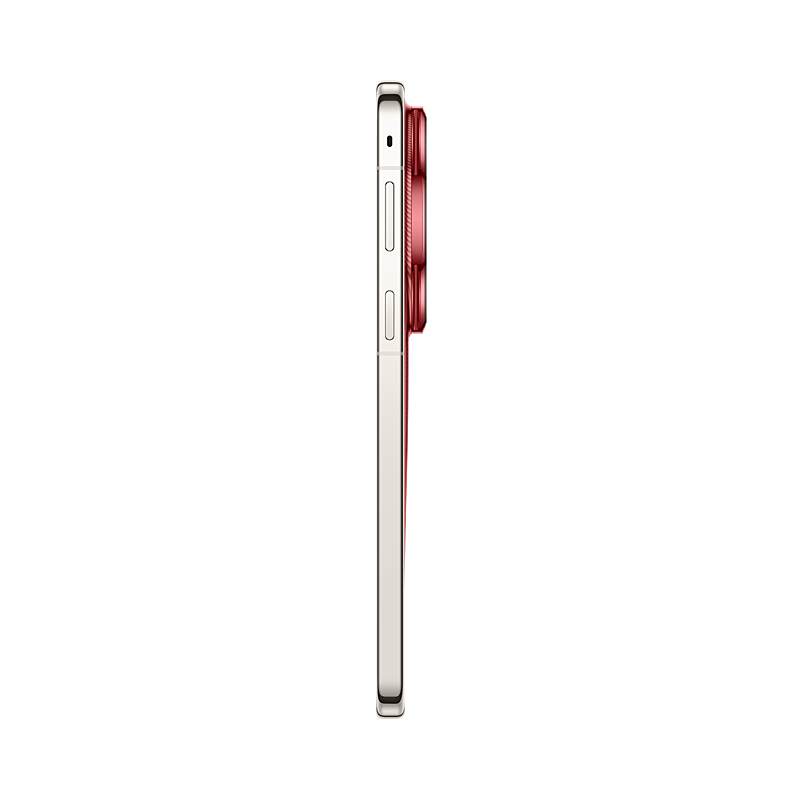

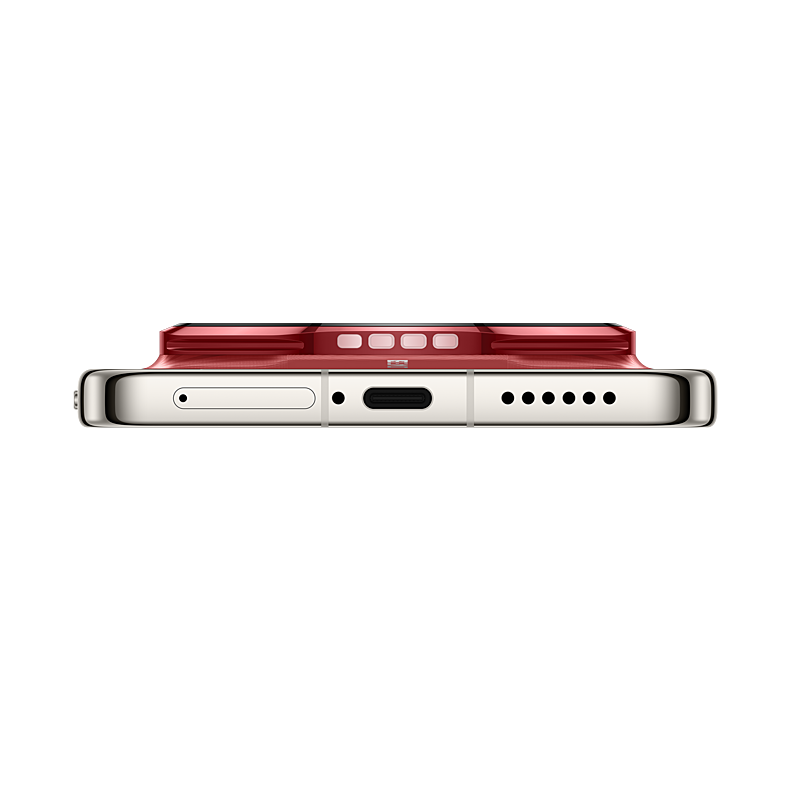

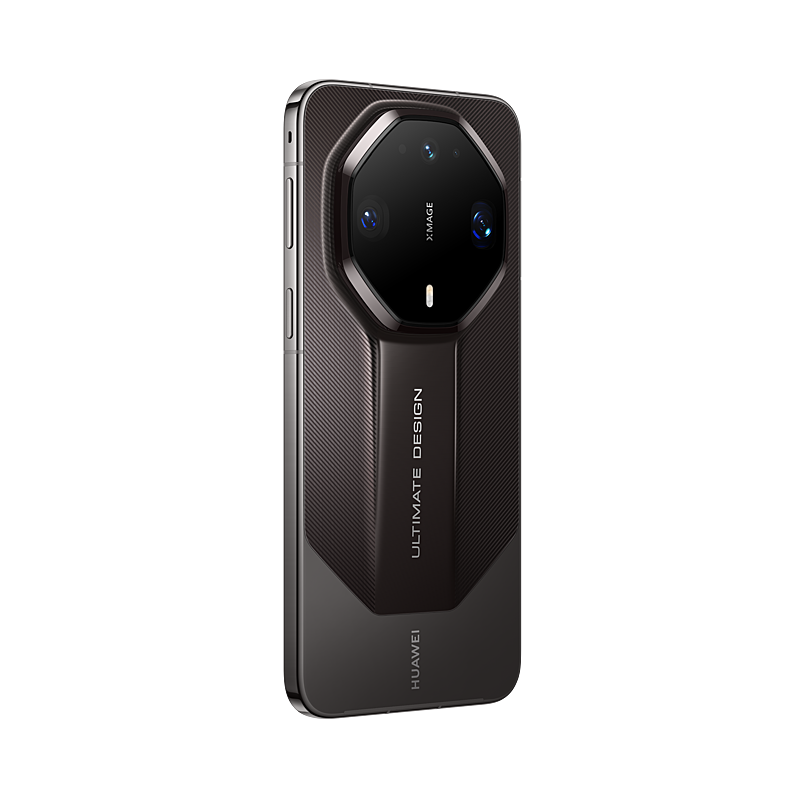

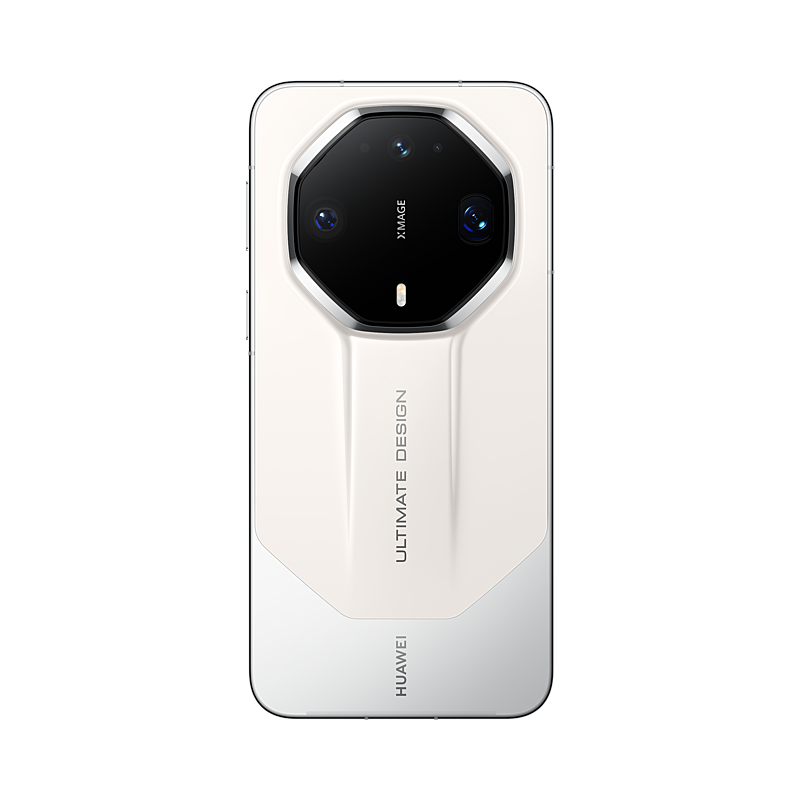

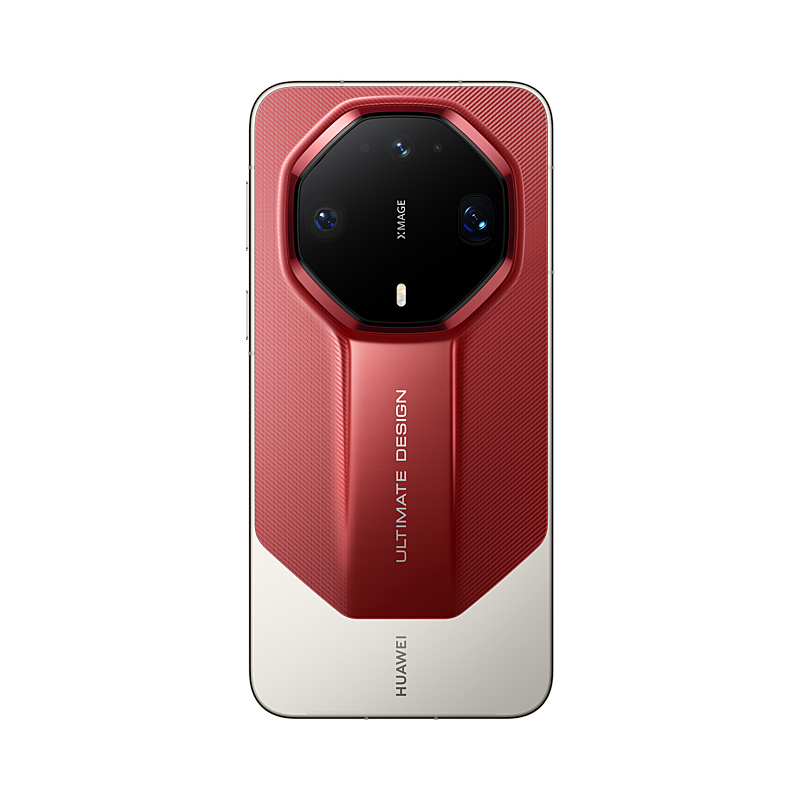

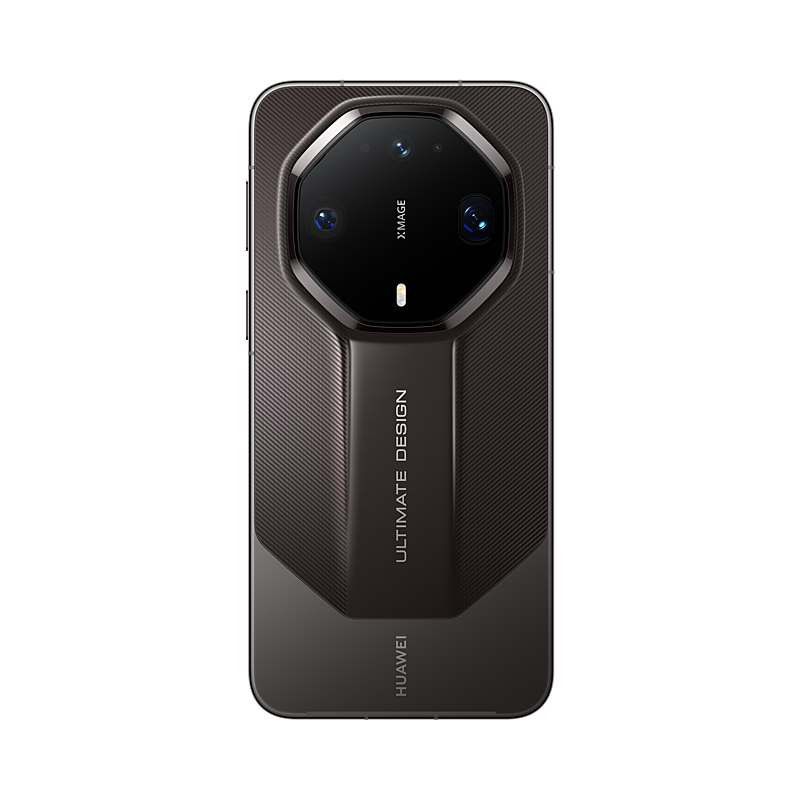

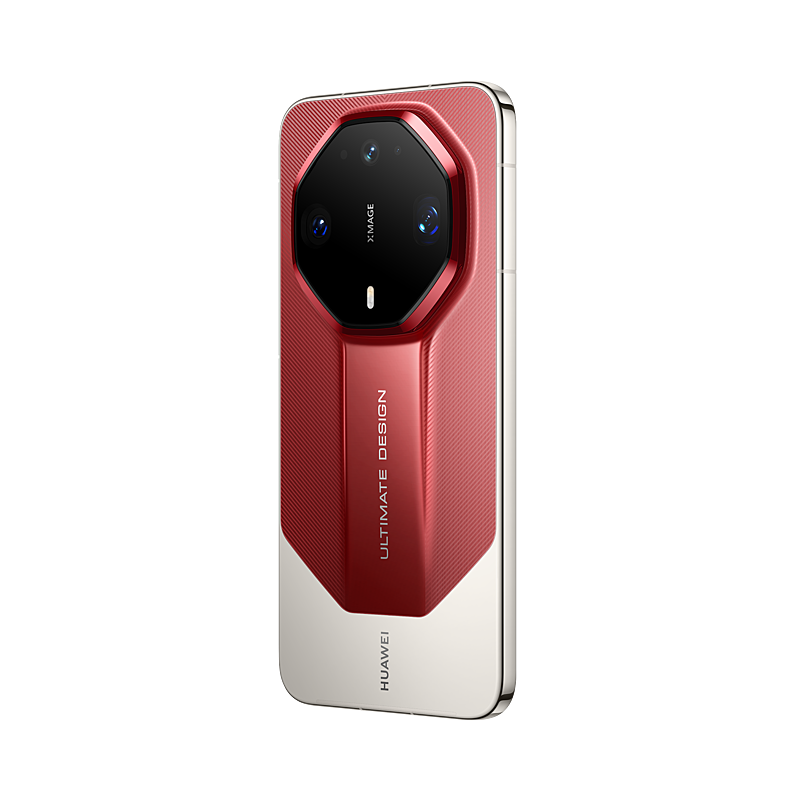

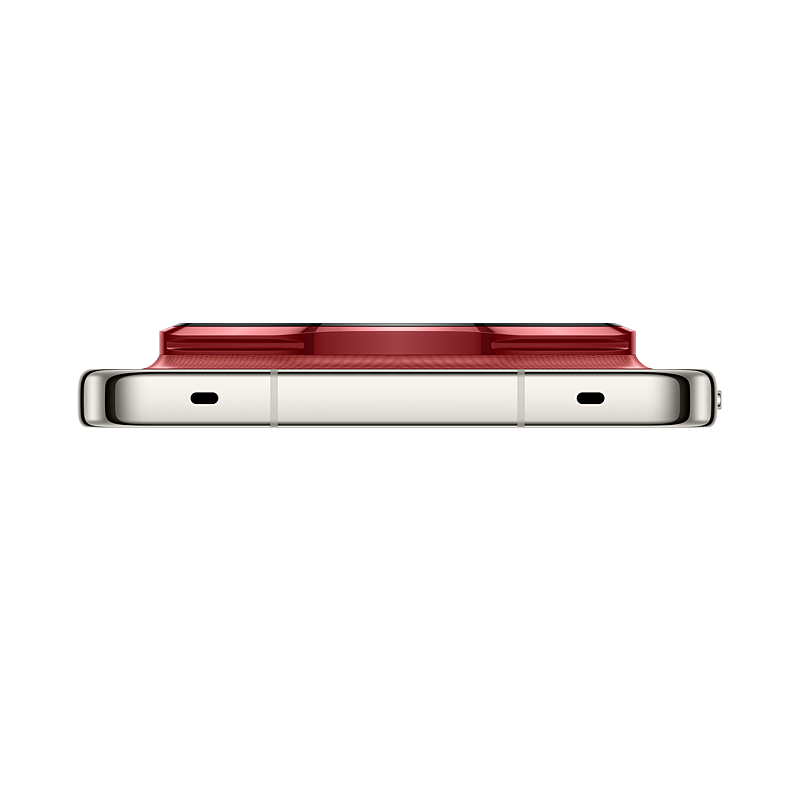

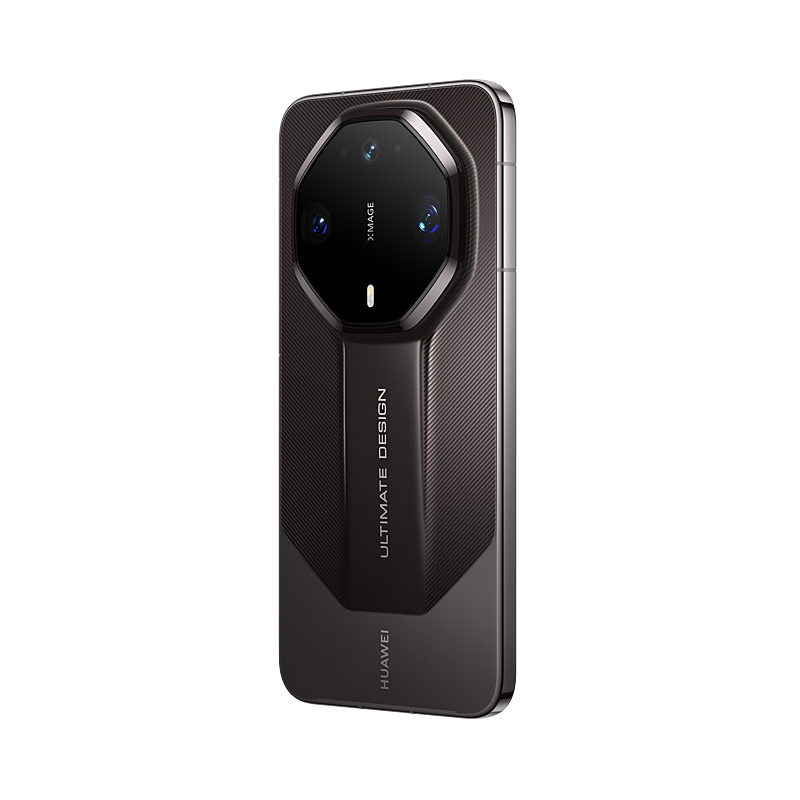

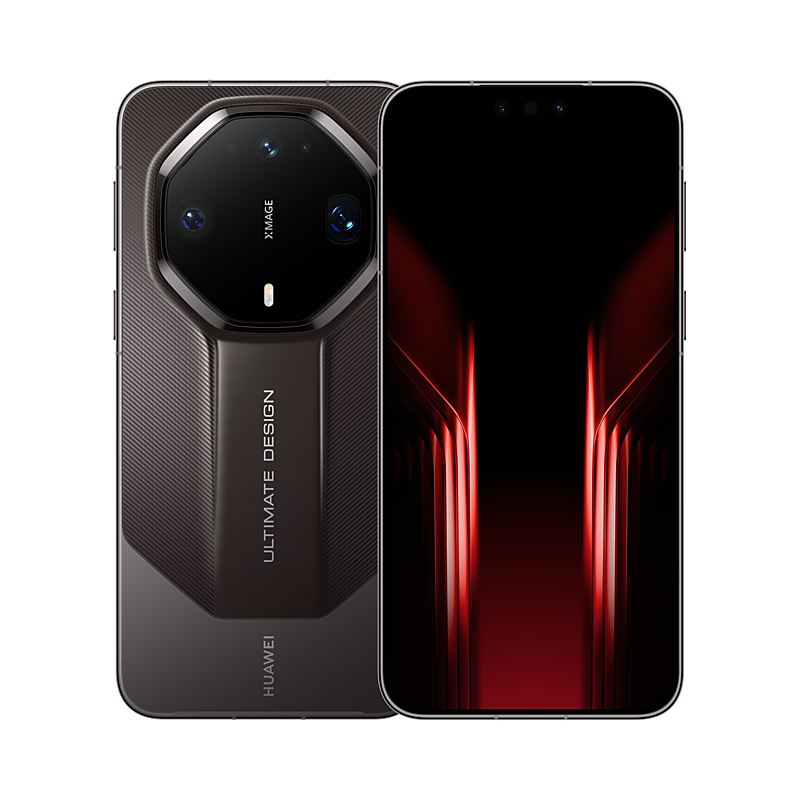

• Colors and combinations: Rui Red (瑞红), Bright White (皓白) and Dark Black (玄黑), each with 16GB/512GB, 16GB/1TB or 16GB/2TB.

Dimensions and construction

• Dimensions: 164.5 mm long × 78.7 mm wide × 8.4 mm thick.
• Device weight: Approximately 248 g including the battery. Actual dimensions and weight may differ by configuration, manufacturing process and measurement method.
• Frame: Polished titanium; titanium-alloy frame material.
• Rear cover: Dynamic grating Kunlun Glass.
• Protective construction: Polished-titanium Xuanwu architecture with Xuanwu Kunlun display glass, optical Kunlun Glass and dynamic grating Kunlun Glass. Avoid drops and impacts; damage remains possible.

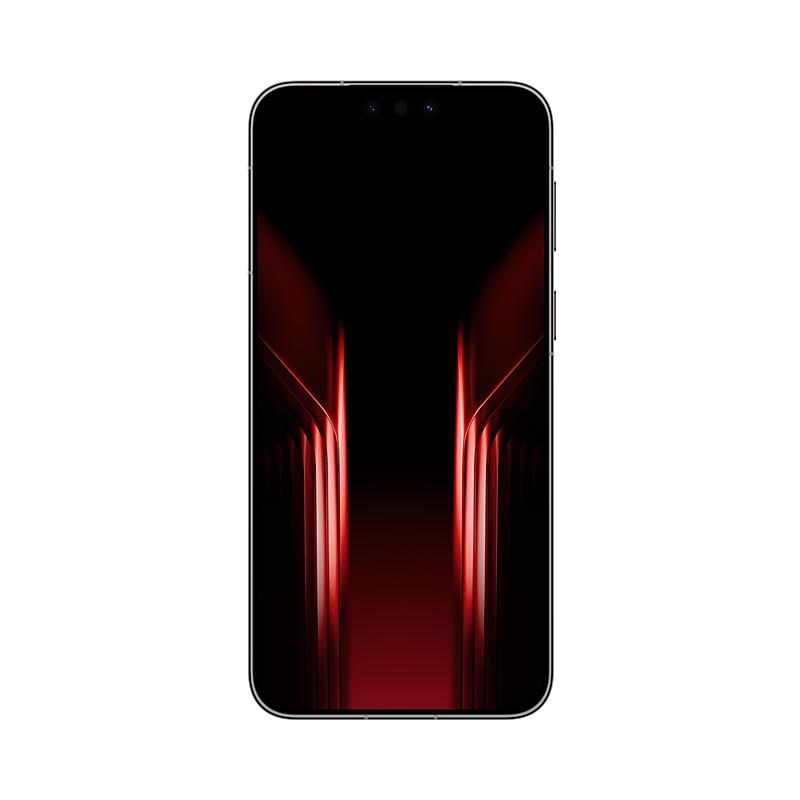

Display

• Screen size: 6.9 inches measured diagonally as a standard rectangle; the visible area is smaller because of rounded corners.
• Panel and refresh rate: Dual-layer OLED; 1–120 Hz LTPO adaptive refresh rate.
• Colors and gamut: 1.07 billion colors; BT.2020 ultra-wide color gamut.
• Resolution and density: FHD+ 2848 × 1320 pixels; 455 PPI. Resolution is measured as a standard rectangle; actual effective pixels are fewer.
• Dimming and touch: 1440 Hz PWM dimming; 300 Hz touch sampling; up to 10 simultaneous touch points.
• Cover glass: Xuanwu Kunlun Glass.
• Peak brightness: 12,000 nits at 1% APL, measured in Huawei’s laboratory. Actual brightness varies with the environment; this is not a typical or full-screen measurement.

Processor and software

• Processor: Kirin 9050 Pro.
• Operating system: HarmonyOS 7.0.
• Software identification: Huawei HarmonyOS Smart Device Embedded Operating System Software V7.0.
• Security hardware: Dual-chip protection for privacy and security.

Rear cameras and imaging

• Main camera: 50 MP ultra-high-dynamic camera; f/1.4–f/4.0 variable aperture with 10-step physical aperture adjustment; OIS; RYYB sensor. Photo pixel counts depend on shooting mode.
• Ultrawide camera: 40 MP; f/2.2; RYYB sensor.
• Telephoto camera: 200 MP large-sensor telephoto; f/2.6; OIS; telephoto macro; RYYB sensor. The 200 MP high-pixel mode works only at the 4× focal setting.
• Color-sensing camera: Third-generation Red Maple original-color camera.
• Zoom: Approximately 4× optical zoom, with listed focal lengths of 24 mm, 13 mm and 89 mm; 8× optical-quality zoom; up to 100× digital zoom.
• Focus and flash: Autofocus; LED flash.
• Maximum photo resolution: 16384 × 12288 pixels; actual resolution depends on shooting mode.
• Maximum video resolution: 4K (3840 × 2160); actual resolution depends on recording mode.
• Main-camera dynamic range: 18 EV, measured in Huawei’s laboratory; varies with shooting mode and environment.
• Video stabilization: Main: AIS + OIS; telephoto: AIS + OIS; ultrawide: AIS.
• Slow motion: 1080p at 960 fps, implemented with AI frame interpolation rather than native 960 fps sensor capture.
• Shooting functions: XMAGE styles; XMAGE intelligent shooting; AI pose recommendation; AI composition assistance; Starburst; Movie effects; Hitchcock effect; Stage mode; Ultra-clear panorama; AI ultra-clear enhancement; Super Night; Moon tracking; Fireworks; Starry sky; Starry-sky portrait; AI dynamic photos; HDR Vivid video; Log video; RAW photos; Snapshot; Motion stabilization; High-quality mode; Super Macro; Macro video; Macro picture-in-picture; Telephoto picture-in-picture; High-pixel mode; Time lapse; Ultrawide angle; Wide-aperture bokeh; Portrait; Pro; Slow motion; Light painting; Watermark; AI photography master; Smile capture; Voice control; Timer; Burst.

Front cameras and imaging

• Selfie and depth cameras: 13 MP ultrawide selfie camera with f/2.0 aperture and autofocus; 3D depth-sensing camera. Photo resolution depends on shooting mode.
• Maximum photo resolution: 4160 × 3120 pixels; actual resolution depends on shooting mode.
• Maximum video resolution: 4K (3840 × 2160); actual resolution depends on recording mode.
• Video stabilization and slow motion: AIS; 1080p slow motion at 240 fps.
• Shooting functions: XMAGE styles; AI pose recommendation; AI dynamic photos; HDR Vivid video; Slow motion; Portrait; Time lapse; Smile capture; Selfie mirror; Voice control; Timer.

Battery and charging

• Battery: 6800 mAh typical capacity; 6615 mAh rated capacity; built-in and non-removable.
• Wired SuperCharge: Up to 100 W (20 V / 5 A). Requires a 100 W Huawei SuperCharge kit; actual charging power changes with conditions.
• Compatible SuperCharge profiles: 20 V / 4.4 A; 11 V / 6 A; 10 V / 4 A; 10 V / 2.25 A; 4.5 V / 5 A; 5 V / 4.5 A.
• Compatible fast-charge profile: 9 V / 2 A.
• Wired reverse charging: Up to 18 W for devices tested by Huawei’s laboratory.
• Wireless SuperCharge: Up to 50 W. Requires a separately purchased compatible Huawei upright wireless charger or wireless car charger rated Max 50 W or Max 80 W, plus a specified Huawei SuperCharge kit rated at least 66 W.
• Wireless reverse charging: Supported for Huawei laboratory-tested devices; actual power varies with conditions.
• Theoretical charging time: Approximately 0.83 hours, measured by Huawei using a 100 W SuperCharge kit and Turbo charging mode. Actual time varies; charging after emergency-mode shutdown can take slightly longer.

Charger output profiles

• USB Type-A1 single-port output: 5 V / 2 A; 10 V / 4 A; 11 V / 6 A Max; 20 V / 5 A Max. Type-A1 and Type-C1 cannot operate simultaneously with cables inserted into both ports.
• USB Type-C1 single-port output: 5 V / 3 A; 9 V / 3 A; 10 V / 4 A; 11 V / 6 A Max; 20 V / 5 A Max.
• USB Type-C2 single-port output: 5 V / 3 A; 9 V / 3 A; 10 V / 4 A; 11 V / 6 A Max; 20 V / 5 A Max.
• Dual-port output combinations: 66 W Max + 40 W Max, or 88 W Max + 18 W Max.

Dust and water resistance

• Ratings and limits: IP68 and IP69 under GB/T 4208-2017. This is not a professional waterproof device. Resistance is not permanent and may decline with wear; do not charge while wet, and follow cleaning and drying instructions. Liquid-immersion damage is excluded from the manufacturer’s warranty.
• IP68 test conditions: Still fresh water at 6 m for 30 minutes, with a maximum 5 °C difference between water and device temperature.
• IP69 test conditions: Device horizontal with screen facing up; turntable speed 5 ± 1 rpm; nozzle angles 0°, 30°, 60° and 90°; flow 15 ± 1 L/min; water temperature 80 ± 5 °C; 30 seconds at each position.

SIM, eSIM and cellular networks

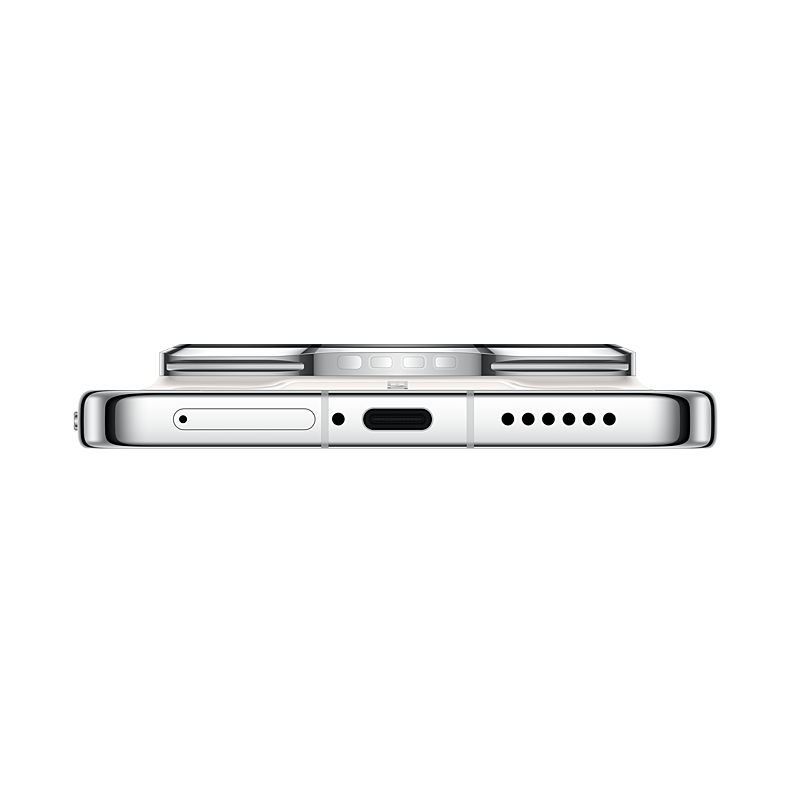

• Physical SIM slots: SIM 1: nano-SIM; SIM 2: nano-SIM.
• eSIM and stored numbers: eSIM supported; up to two stored eSIM numbers. Up to four numbers in total: two physical SIM numbers and two eSIM numbers. Requires operator activation; service, pricing and availability depend on the local operator, and only some operators offer eSIM.
• Simultaneous numbers: Up to three active or standby numbers. At least two of those three must belong to the same mainland-China operator. Four-SIM triple-standby requires HOTA update support.
• Reported cellular technologies: GSM / HSPA / LTE / 5G; 5G SA/NSA. Reported by GSMArena for CMU-AL10.
• Reported 2G frequencies: GSM 850 / 900 / 1800 / 1900 MHz.
• Reported 3G frequencies: HSDPA 800 / 850 / 900 / 1700 (AWS) / 1900 / 2100 MHz.
• Reported network data scope: The 2G/3G frequencies above are a partial list reported by GSMArena, not a complete manufacturer-confirmed band list. HSPA, LTE and 5G speed families are reported without numerical peak speeds. Carrier compatibility depends on the operator and location.

Wireless and wired connectivity

• Wi-Fi: 2.4 GHz and 5 GHz; IEEE 802.11 a/b/g/n/ac/ax/be; 2 × 2 MIMO, EHT160 and 8 Spatial-stream Sounding MU-MIMO with a supporting router. Hotspot and Wi-Fi Direct supported.
• Bluetooth and audio codecs: Bluetooth 6.0; Bluetooth Low Energy; SBC, AAC, LDAC and L2HC.
• NearLink: NearLink E2.0 supported.
• USB: USB Type-C; USB 3.1 Gen 1 with a compatible cable. The supplied cable supports USB 2.0.
• DisplayPort and OTG: DisplayPort 1.2; OTG supported with reverse power output up to 9 V / 2 A.
• Headphone connection: Digital USB Type-C headphones only. Other headphones require a Huawei USB Type-C to 3.5 mm digital audio converter.
• Infrared and roaming service: Infrared remote control and SkyTone supported.
• Find-device functions: Online finding; offline finding; powered-off finding with powered-off ringing.
• NFC: Reader mode; card emulation for Huawei Wallet payment, SIM payment and HCE payment. A SIM used for SIM payment must be in the SIM 1 slot.
• Communication sharing: Up to four compatible devices running HarmonyOS 7 or later. Supported models, software versions and features depend on device support.
• Video calling: Huawei MeeTime, operator services and third-party software. Availability varies by country, region and operator; MeeTime calling is provided through the MeeTime app.

Satellite and outdoor functions

• Satellite systems: Tiantong satellite communication and BeiDou satellite messaging.
• Tiantong service and safety: Requires the relevant satellite-operator service and local operator deployment. Do not use satellite communication while aircraft cabin doors are closed.
• Satellite paging: Available within satellite signal coverage; automatically enabled under weak satellite signal; up to 24 hours per online session.
• BeiDou activation and location: Use in an open, unobstructed location. Before first use, activate through MeeTime while connected to a terrestrial network, or activate the operator’s BeiDou satellite SMS service.
• BeiDou messaging limits: Picture messages are sent through MeeTime only and use lossy compression constrained by satellite bandwidth. Freely edited message length is also limited by satellite bandwidth.
• Satellite weather: After BeiDou activation through MeeTime, weather can be queried through MeeTime or the outdoor-exploration weather card for the next 12 hours or next three days.
• BeiDou region: Mainland China only, excluding Hong Kong, Macao and Taiwan. Huawei’s public testing, validation and official service rules apply.
• Outdoor exploration and emergency assistance: Cycling and hiking routes; watch-assisted emergency calling and nearby location sharing after a dangerous outdoor fall. Requires HOTA support. Emergency mutual assistance currently works between Mate 90-series devices; other Huawei phones require HOTA support. The watch requires Huawei Health, and supported devices, software versions and features depend on actual support.

Positioning and sensors

• Location systems: GPS L1 + L5 dual frequency; AGPS; GLONASS; BeiDou B1I + B1C + B2a + B2b; Galileo E1 + E5a + E5b; QZSS L1 + L5 dual frequency; NavIC.
• Sensors and biometrics: 3D face recognition; orientation sensor; gravity sensor; infrared sensor; side fingerprint sensor; Hall sensor; barometer; gyroscope; compass; ambient-light sensor; proximity-light sensor; camera laser autofocus sensor; color-temperature sensor.

Audio and video

• Audio features: Huawei Histen; stereo supported.
• Audio formats: .mp3, .mp4, .ogg, .amr, .aac, .flac and .wav.
• Video format: .mp4.

Temperature ranges

• Operating: 0–35 °C.
• Storage: −20–45 °C.
• Discharging: −20–60 °C.
• Charging: 0–50 °C.

Package and optional camera accessory

• Packaging: Outer package sealed in plastic.
• Included items: One phone with built-in battery; one Huawei SuperCharge charger; one USB Type-C cable; one star-diamond protective case; one quick guide; one SIM eject pin. Final contents depend on the actual physical package.
• Protective-case scope: The box specification lists one star-diamond protective case. Separately marketed case models or colors are not necessarily the supplied case; confirm the actual package contents.
• Optional XMAGE Z10 modular camera: Separately sold, with a 1-inch sensor, 10× continuous optical zoom and a 24–240 mm optical-quality focal range. Its photo and video functions require this compatible phone. The modular camera and professional control grip are not included; these are accessory specifications, separate from the built-in cameras.
