Vivo X500 Pro Max V2602A (CN Version)
Important Notice: This is a Chinese-market model. It supports all major system languages, and the Google Play Store can be installed, although it is not pre-installed on the device. Please consider these software differences before purchasing.
The vivo X500 Pro Max brings a 200MP ZEISS APO telephoto camera, a large 6.85-inch AMOLED display, and an 8000mAh typical battery to a photography-focused flagship. Its Dimensity 9600 Pro processor and fast memory support demanding apps and camera workflows. PDAPlaza offers this V2602A Chinese-market version in three memory configurations and four colors.
Key features
- 200MP ZEISS APO telephoto camera with 3.5x optical zoom and optical stabilization.
- 50MP main camera, 50MP autofocus ultrawide, and 50MP autofocus front camera.
- 6.85-inch, 3168 × 1440 AMOLED display with a 1–144Hz refresh range; 144Hz is available in supported games.
- 2nm Dimensity 9600 Pro processor with LPDDR5X Ultra memory and UFS 4.1 storage.
- 8000mAh typical battery, 90W FlashCharge, and 40W wireless charging with compatible equipment.
- OriginOS 7 based on Android 17, Wi-Fi 7, NFC, and 3D ultrasonic fingerprint recognition.
ZEISS cameras for wide scenes and distant details
The 50MP main camera pairs an f/1.57 lens with optical image stabilization, while the 200MP APO telephoto provides 3.5x optical zoom and a 15cm telephoto macro capability. A 50MP ultrawide adds a broader perspective, and all four cameras support autofocus. Digital zoom reaches up to 100x, with image quality dependent on the scene and magnification.
Main and telephoto video recording reaches 8K; the ultrawide and front camera support up to 4K. Dedicated portrait, stage, food, night, and professional modes give stills and video their own controls. Front and rear video stabilization is supported, with optical stabilization on the rear main and telephoto cameras.
A detailed 6.85-inch AMOLED display
The flat 3168 × 1440 display combines 507ppi detail, P3 wide color, HDR support, and 1.07 billion colors. Its 1–144Hz refresh range adapts to supported content; the highest refresh rate is limited to compatible games. Capacitive multitouch and a 95.27% screen-to-body ratio make the large panel useful for framing photos, reading, and viewing media.
Dimensity 9600 Pro with fast memory
The 2nm, eight-core Dimensity 9600 Pro uses two cores at up to 4.55GHz, three at 4.35GHz, and three at 3.1GHz, alongside Mali-G2-Ultra-NX graphics. Four-channel LPDDR5X Ultra RAM and UFS 4.1 storage accompany vivo's V3+ and VS1 imaging chips. Choose physical RAM and internal storage together using the Storage selector; usable capacity is lower because the operating system and preinstalled apps occupy space.
8000mAh battery and flexible charging
The single-cell battery has a typical capacity of 8000mAh and a rated capacity of 7800mAh. FlashCharge supports a maximum charger output of 90W, with actual power adjusting to usage and charging conditions. Wireless charging reaches 40W with the standard charger and cable plus a compatible vivo 50W Vertical Wireless Flash Charger 2 or iQOO 50W Vertical Wireless Flash Charger 2, sold separately; OTG reverse charging is also supported.
Connectivity, sound, and everyday controls
Wi-Fi 7, Bluetooth 5.4, stereo speakers, NFC, and a USB-C port with USB 3.2 and DisplayPort output cover everyday connections. The phone supports digital USB-C audio; analog USB-C earphones are unsupported. A 3D ultrasonic fingerprint sensor, face recognition, infrared remote control, and an X-axis linear motor provide additional ways to interact with the device.
Configurations and regional details

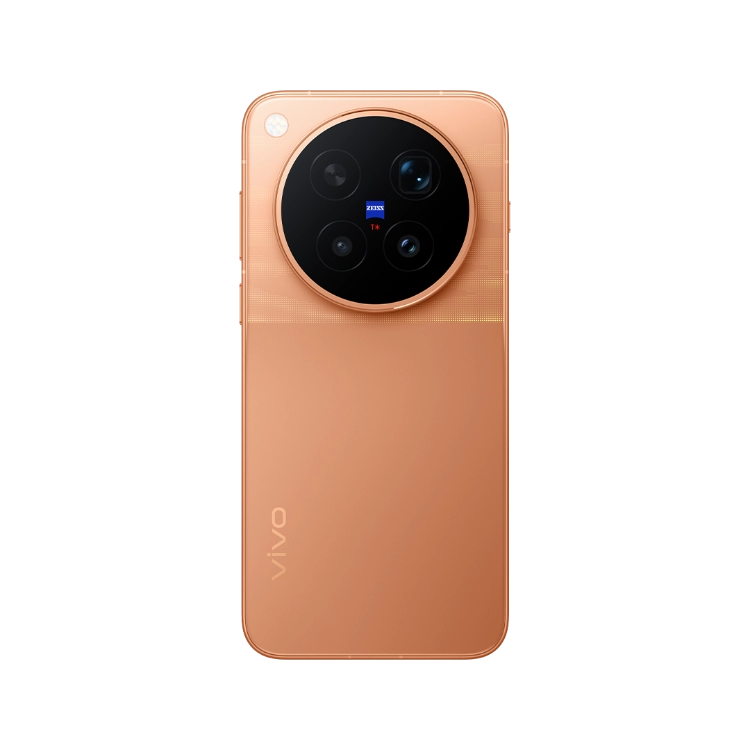

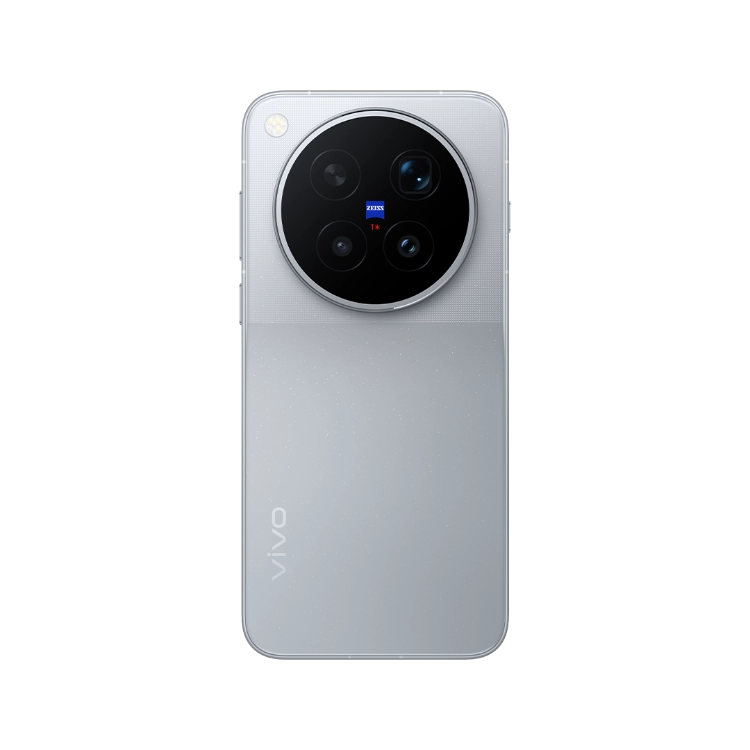

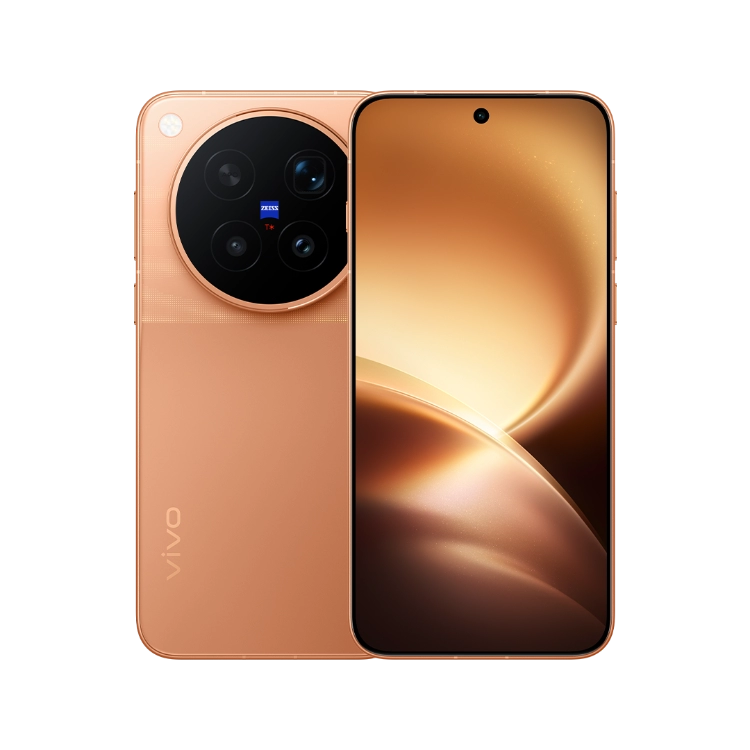

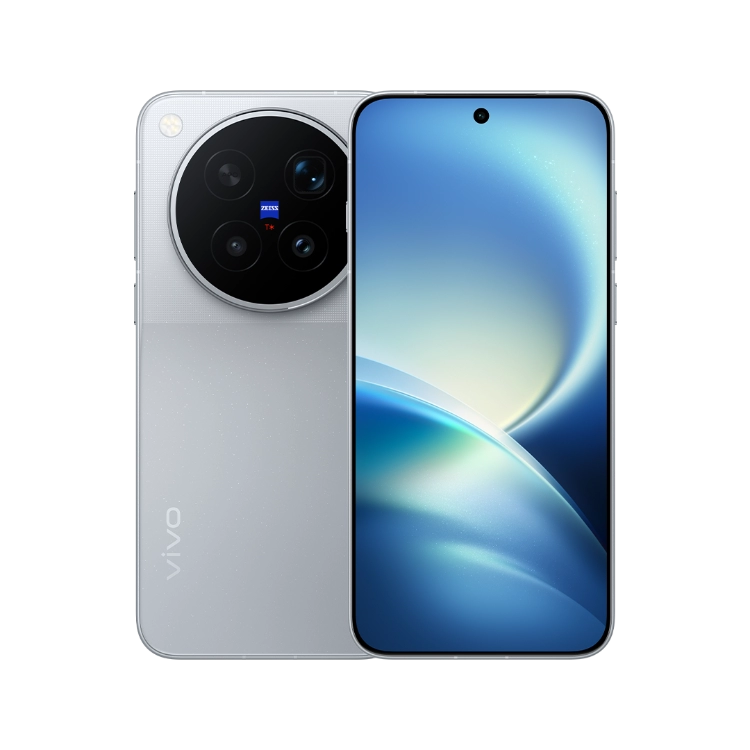

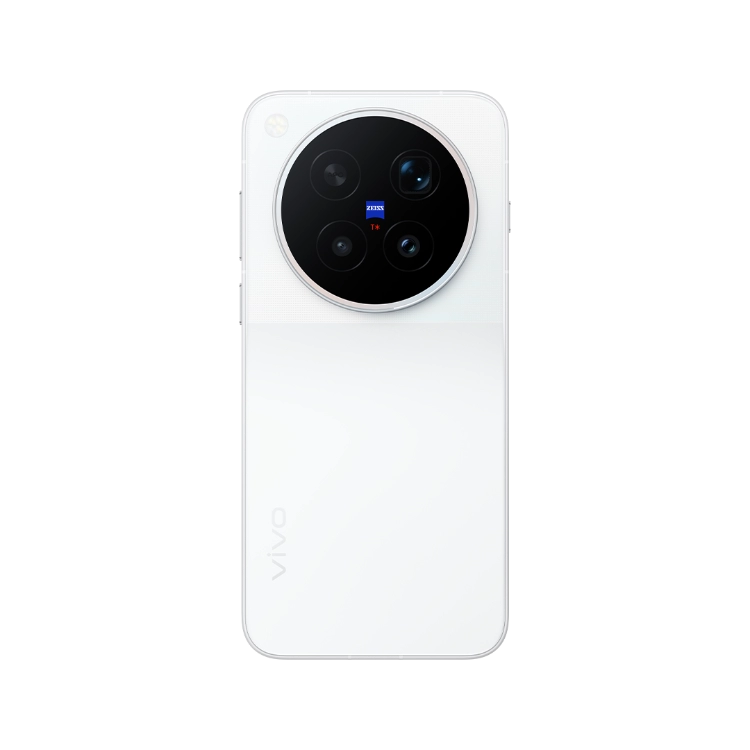

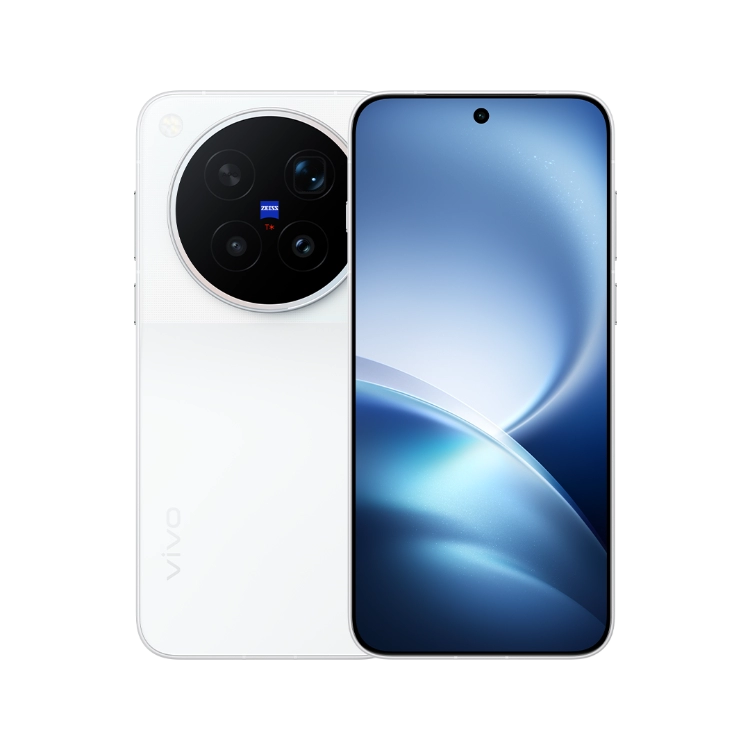

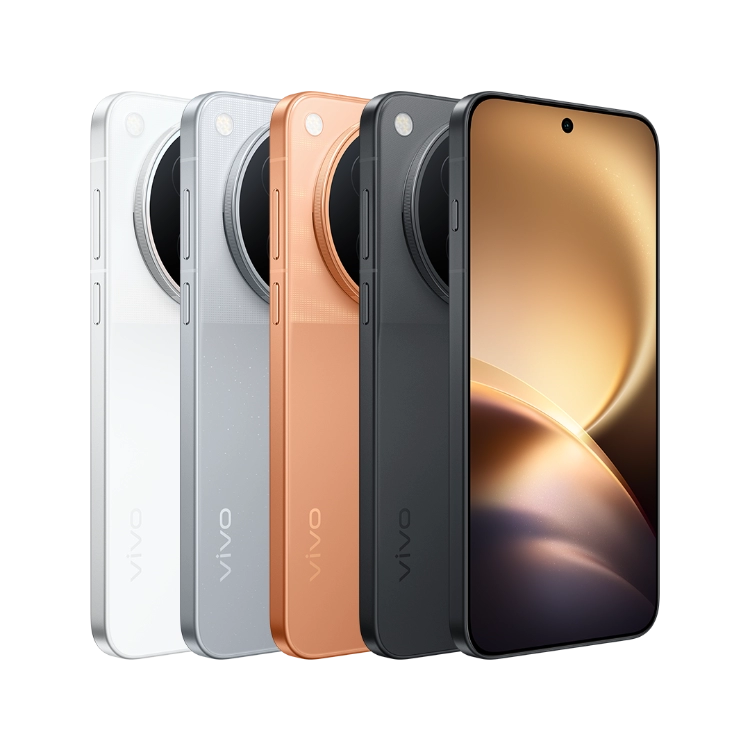

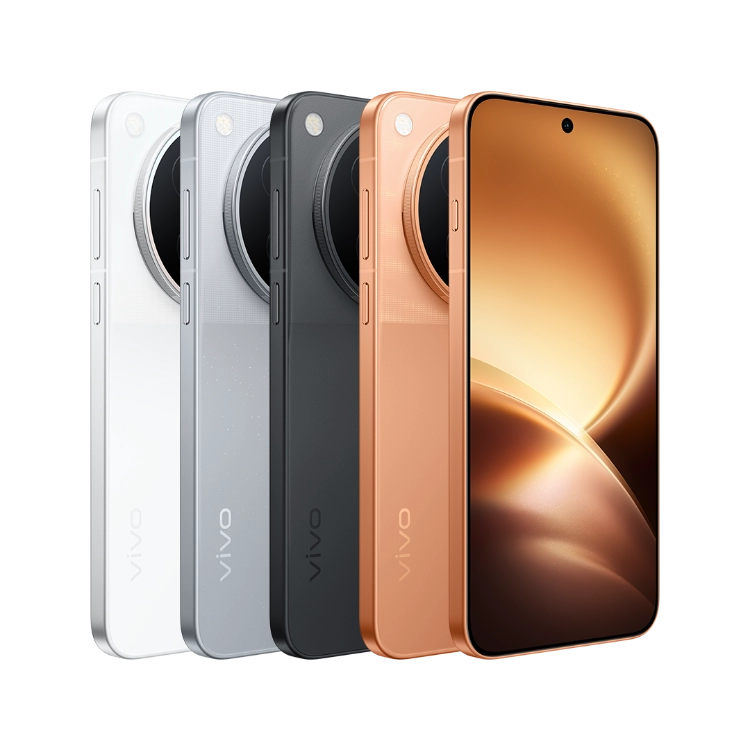

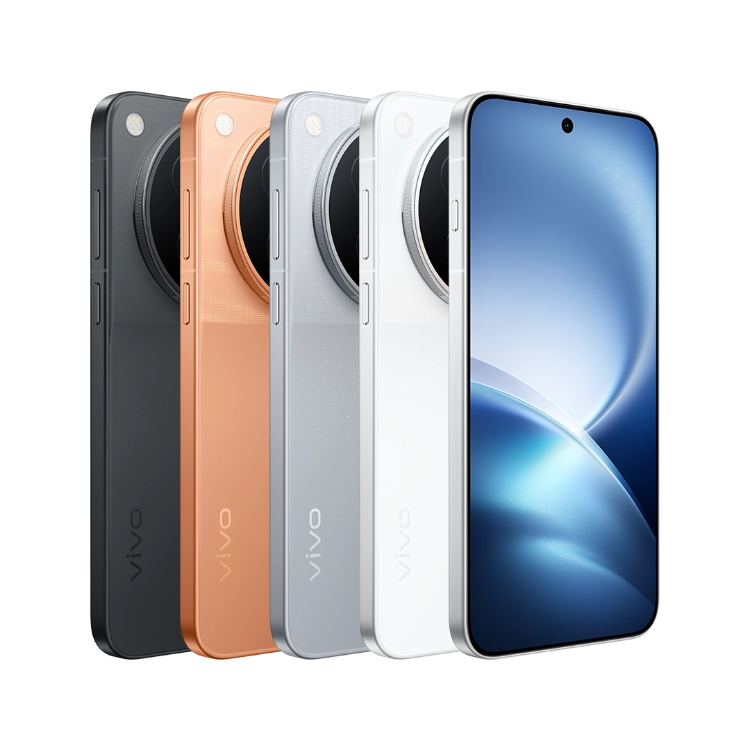

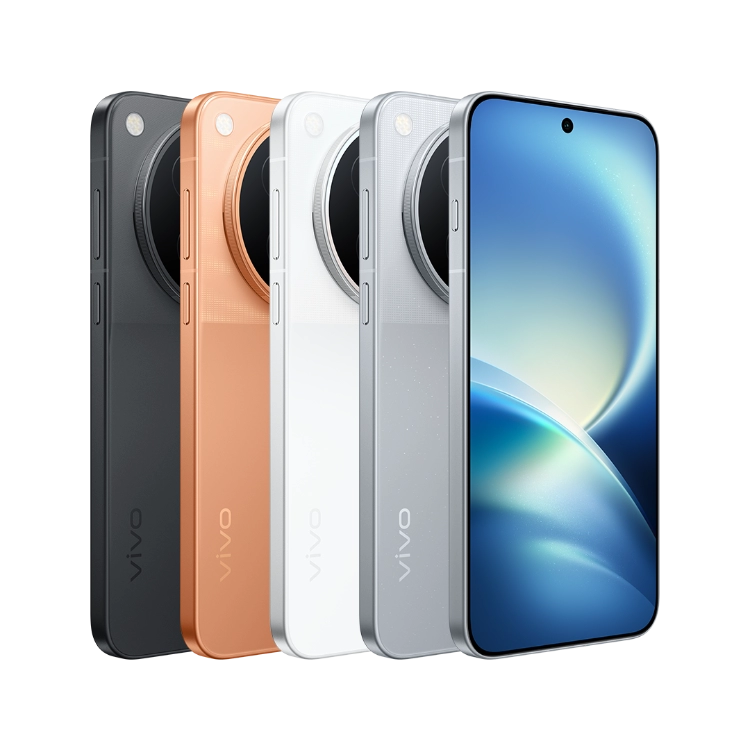

Available Storage choices are 12GB/256GB, 12GB/512GB, and 16GB/512GB; the first capacity is physical RAM and the second is internal storage. Each is offered in Earth Echo, Clear Sky, Rosy Clouds, and Night Capture. These English color labels translate the Chinese retail names. This listing is the standard V2602A phone package, without the satellite-communication model or creator accessories.
This PDAPlaza listing uses OriginOS 7 for China, based on Android 17. Cellular features depend on the carrier, local network deployment, supported bands, and installed software; dual-SIM 5G dual-active operation requires supported band combinations and carrier SA/VoNR deployment. The detailed band list below helps identify the exact hardware's network support without implying universal carrier compatibility.
Specifications
Identity and configurations
- Model and market: vivo X500 Pro Max, V2602A; CN Version (China).
- Launch: September 2026.
- RAM / internal storage: 12GB / 256GB, 12GB / 512GB, or 16GB / 512GB.
- Colors: Earth Echo (大地回声), Clear Sky (晴天), Rosy Clouds (览霞), and Night Capture (摄夜). English labels are translations.
- Network access license: 00-B220-268482 for V2602A. Electronic certification is available in Settings > About phone > Legal information > Certification.
Body and construction

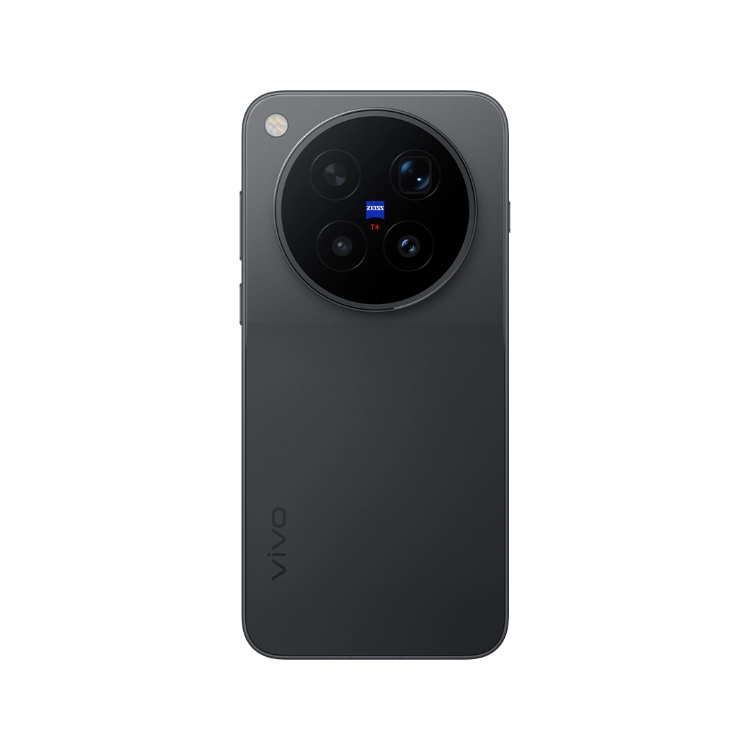

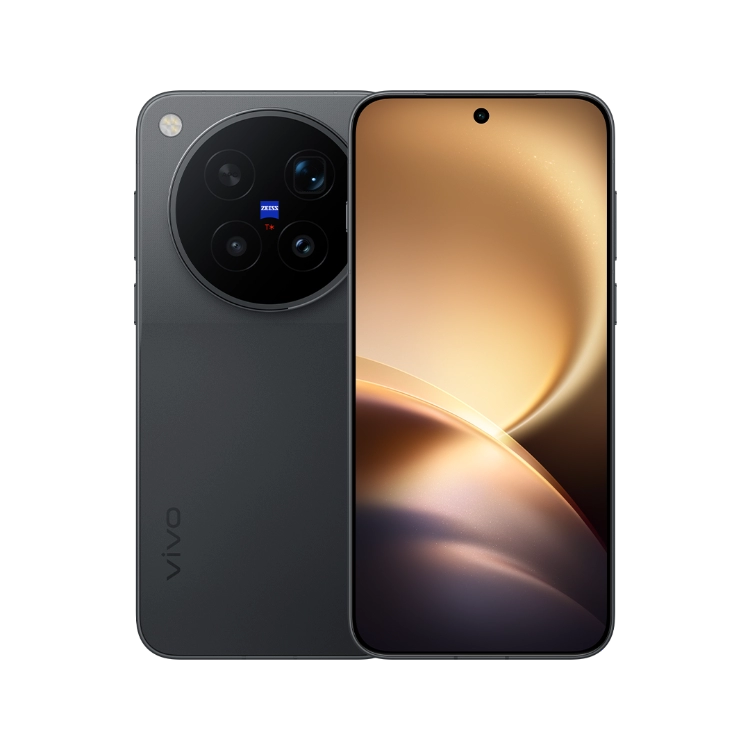

- Dimensions: 163.32 × 76.82 × 7.95mm in Night Capture; 163.32 × 76.82 × 8.12mm in Earth Echo, Clear Sky, and Rosy Clouds.
- Device weight: 225g in Night Capture; 229g in the other three colors. Actual dimensions and weight may vary slightly with manufacturing, measurement method, and material suppliers.
- Materials: Aluminum-alloy frame; fiberglass rear cover in Night Capture and glass rear cover in Earth Echo, Clear Sky, and Rosy Clouds.
Processor and memory
- Processor: MediaTek Dimensity 9600 Pro; eight-core, 64-bit, 2nm.
- CPU frequencies: 2 × 4.55GHz + 3 × 4.35GHz + 3 × 3.1GHz.
- GPU: Mali-G2-Ultra-NX.
- Imaging chips: vivo V3+ and VS1.
- Physical RAM: 12GB or 16GB, four-channel LPDDR5X Ultra.
- Internal storage: 256GB or 512GB, UFS 4.1.
- Available capacity: System software and preinstalled applications occupy part of RAM and storage; usable capacities are lower than the nominal figures.
- Expandable storage: Not supported.
Display
- Size and type: 6.85-inch flat AMOLED, capacitive multitouch.
- Resolution and density: 3168 × 1440 pixels; 507ppi.
- Aspect ratio and screen coverage: 19.8:9; 95.27% screen-to-body ratio.
- Color and HDR: 1.07 billion colors; P3 wide color gamut; HDR supported.
- Contrast ratio: 8,000,000:1.
- Refresh rate: 1–144Hz; 144Hz is available only in supported games.
- Touch sampling: 120Hz in ordinary use; 300Hz in selected games.
Cameras and imaging
- Front camera: 50MP, f/2.0, autofocus; no front flash.
- Rear cameras: Three CMOS cameras: 50MP ZEISS main (f/1.57), 200MP ZEISS APO periscope telephoto (f/2.67), and 50MP ultrawide (f/2.0). Rear flash supported.
- Main camera optics: 1/1.28-inch sensor; 24mm equivalent focal length.
- Telephoto optics: 1/1.4-inch Samsung HP0 sensor; 85mm equivalent focal length; 15cm telephoto macro.
- Autofocus: All rear cameras and the front camera support autofocus.
- Stabilization: OIS on rear main and telephoto cameras; front and rear video stabilization supported.
- Zoom: Telephoto supports 3.5x optical zoom; up to 100x digital zoom. Front and rear cameras support digital zoom.
- Front modes: Portrait, Photo, Video, Cinematic Portrait, AI Creation, and Livestream.
- Rear modes: Humanistic photography, Landscape and Night, Portrait, Photo, Video, Cinematic Portrait, Panorama, Ultra-clear Documents, Slow Motion, Stage, Time-lapse, Pro Photo, Snapshot, Food, Spatial Camera, Scan, Pro Video, AI Creation, Livestream, and Photography Assistant.
- Video: MP4 recording. Main and telephoto cameras support up to 8K; front and ultrawide cameras support up to 4K. Slow-motion recording supports up to 4K.
Battery and charging
- Battery: Single-cell lithium-ion; typical 8000mAh at 3.71V (29.68Wh); rated 7800mAh at 3.71V (28.94Wh).
- Wired charging: 90W FlashCharge; 90W is the charger’s maximum output, and actual charging power adjusts dynamically to conditions.
- Supported charging outputs: 90W (11V/8.2A), 80W (11V/7.3A), 66W (11V/6A), 55W (11V/5A), 44W (11V/4A), 33W (11V/3A), 22.5W (10V/2.25A), 11.7W (9V/1.3A), and 10W (5V/2A).
- Wireless charging: Up to 40W; requires the standard charger and cable with vivo 50W Vertical Wireless Flash Charger 2 or iQOO 50W Vertical Wireless Flash Charger 2, purchased separately.
- Reverse charging: OTG reverse charging supported.
Software and security
- Operating system: OriginOS 7, based on Android 17.
- Fingerprint recognition: 3D ultrasonic single-point fingerprint sensor.
- Face recognition: Face Wake face recognition.
- Cloud services: Supported.
- Preinstalled software: Includes social, audio/video, utility, news/entertainment, and lifestyle applications; the actual installed selection may vary.
Cellular networks and SIM
- SIM: Dual nano-SIM; dual SIM, dual standby.
- Network generations: 5G, 4G, 3G, and 2G; supports China Mobile, China Unicom, China Telecom, and China Broadnet 5G/4G networks.
- 5G dual-active operation: Supported only with certain band combinations and subject to carrier SA and VoNR deployment, network availability, and software version.
- 2G GSM: 850 / 900 / 1800 / 1900MHz.
- 3G WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19.
- 4G TD-LTE: B34 / B38 / B39 / B40 / B41 / B42 / B43 / B48.
- 4G FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B18 / B19 / B20 / B25 / B26 / B28A / B66.
- 5G bands: n1 / n2 / n3 / n5 / n7 / n8 / n18 / n20 / n25 / n26 / n28A / n34 / n38 / n39 / n40 / n41 / n48 / n66 / n77 / n78 / n79.
- Data SIM selection: Either SIM slot can be assigned as the data SIM.
- Secondary SIM support: With China Mobile, China Unicom, or China Broadnet as the data SIM, the secondary SIM supports China Mobile 5G/4G/2G, China Unicom 5G/4G/3G/2G, China Broadnet 5G/4G, or China Telecom 5G/4G. With China Telecom as the data SIM, the same secondary networks apply, but a secondary China Telecom SIM requires VoLTE service for network registration.
- Network availability: Actual network features depend on the operator’s network availability and infrastructure, and the phone’s software version.
Wireless, ports, and navigation
- Wi-Fi: 2.4GHz and 5GHz; Wi-Fi 6 and Wi-Fi 7, Wi-Fi Display, 2 × 2 MIMO, MU-MIMO, and simultaneous 2.4GHz/5GHz operation. WLAN hotspot supported.
- Bluetooth: Bluetooth 5.4; SBC, AAC, aptX, aptX HD, LDAC, and LHDC 5.0 audio codecs.
- USB: USB-C, USB 3.2; OTG data transfer and DisplayPort output supported.
- Wired audio: Digital USB-C audio. Analog USB-C headsets are unsupported; 3.5mm headphones require a separately purchased adapter with a DAC.
- NFC: Reader mode, card emulation including HCE, NFC SIM, and embedded secure element (eSE). NFC SIM is supported in SIM slot 1 only; the NFC antenna is in the upper-middle rear area.
- Satellite positioning: GPS L1/L5; BeiDou B1C/B1I/B2a/B2b; GLONASS G1; Galileo E1/E5a/E5b; QZSS L1/L5; NavIC L1/L5.
- Assisted positioning: A-GPS, cellular-network positioning, and Wi-Fi positioning.
Audio and sensors
- Speakers and recording: Stereo speakers; audio recording supported.
- Music formats: AAC, WAV, M4A, MP3, MIDI, OGG, APE, and FLAC; Vorbis audio also supported.
- Motion and ambient sensors: Accelerometer, dual ambient-light sensors, proximity sensor, gyroscope, and electronic compass.
- Additional sensors: 3D ultrasonic fingerprint, front color-temperature, high-sensitivity flicker, multispectral, camera-matrix laser-focus, and Hall sensors.
- Controls and haptics: Infrared remote control; X-axis linear motor.
Standard package
- In the box: Phone × 1, charging adapter × 1, USB-C cable × 1, protective case × 1, factory-applied original screen protector × 1, SIM-eject tool × 1, and quick-start guide × 1.
- Optional accessories: Wireless charging stand, teleconverters, photography grip, and capture-screen accessories are sold separately and are not part of this standard phone package.
