HONOR Magic9 Pro Max WKL-AN20 (CN Version)

HONOR Magic9 Pro Max WKL-AN20 (CN Version)

Important Notice: This is a Chinese-market model. It supports all major system languages, and the Google Play Store can be installed, although it is not pre-installed on the device. Please consider these software differences before purchasing.

HONOR Magic9 Pro Max brings a dual 200MP rear camera system, a 6.8-inch OLED display and an 8,800mAh battery together in a phone built for photography, video and everyday multitasking. This PDAPlaza listing covers the Chinese-market WKL-AN20 with MagicOS 11, with memory and color choices available on this page.

Key Features

• 200MP main and 200MP periscope telephoto cameras with optical stabilization, plus a 50MP ultrawide camera.
• 55MP front camera with a separate 3D depth camera, flexible framing and 3D face recognition.
• 6.8-inch OLED display with 1320 × 2868 resolution, adaptive 1–120Hz refresh and up to 10,000-nit peak brightness.
• Snapdragon 8 Elite Extreme Gen 6 Mobile Platform with MagicOS 11 based on Android 17.
• 8,800mAh typical battery capacity, up to 100W wired charging and up to 80W wireless charging with a compatible charger sold separately.
• Dual nano-SIM, NFC, stereo speakers, an infrared transmitter and IP68/IP69/IP69K laboratory-rated protection.

Two High-Resolution Cameras for Different Perspectives

The 200MP main camera pairs an f/1.57 lens with optical stabilization, while the 200MP periscope camera offers 3.5× optical zoom for tighter framing. A 50MP autofocus ultrawide camera adds another perspective. Maximum pixel counts depend on the selected mode; the highest still-image resolution requires the appropriate high-resolution setting.

Video Controls with Room to Create

Standard rear video recording reaches 4K at 120fps in supported modes. ARRI CINEMA adds a separate workflow with recording up to 4K at 60fps, LogC3, 10-bit color and ARRI Wide Gamut 3. ARRI CINEMA, flash portraits and firework portraits require an OTA update; camera and mode restrictions apply. Cinematic LiveVideo features may also require an update. Optional teleconverters and filmmaking kits are sold separately.

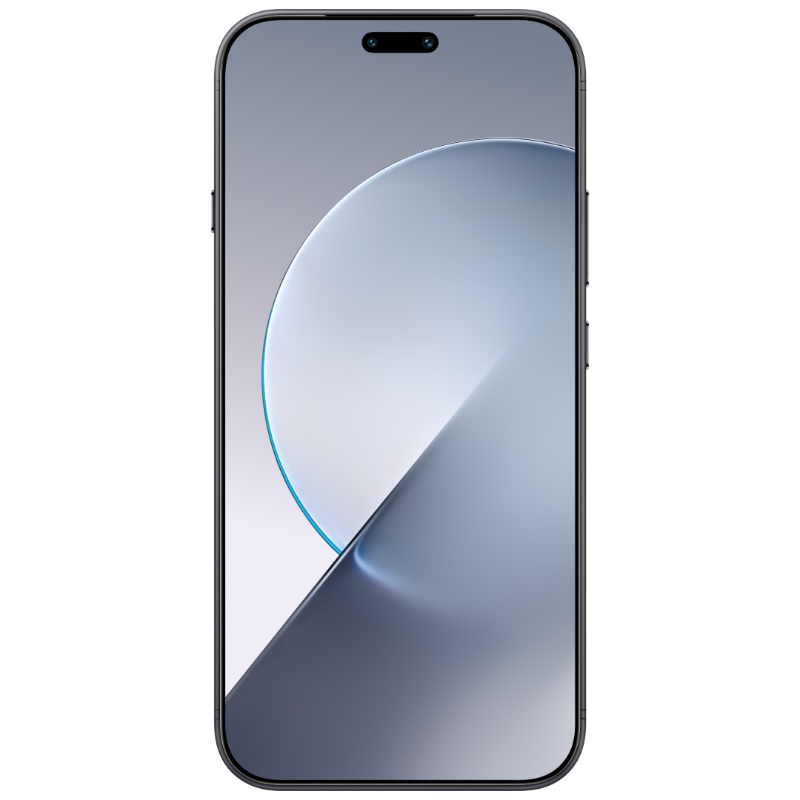

A Large Display with Adjustable Comfort

The OLED panel combines a wide DCI-P3 color gamut with adaptive refresh and several display-comfort settings. Its 10,000-nit figure is peak brightness under specified conditions, not sustained full-screen output; the listed global peak is 2,000 nits. Rounded corners reduce the visible area slightly. Eye-comfort features are intended for everyday viewing and are not medical treatment.

Power for Capture and Everyday Use

The 8,800mAh typical battery supports long sessions between charges, with actual runtime depending on use. Wired HONOR SuperCharge reaches up to 100W with the original charger and cable. Up to 80W wireless charging requires a compatible HONOR wireless charger purchased separately. Charging power varies with battery level, temperature and operating conditions.

MagicOS Tools and Connected Devices

MagicOS 11 combines YOYO assistance, translation, note-taking and multitasking tools with supported cross-device connections. Features and services depend on software version, region, language, account and compatible devices. At PDAPlaza, the selectable configurations below keep this Chinese-market model's memory, color and regional identity together.

Configurations and Regional Information

• Model: HONOR Magic9 Pro Max, WKL-AN20, Chinese-market version; brand-new condition.
• Storage choices: 12GB/256GB, 12GB/512GB and 16GB/512GB. Each label shows physical RAM first, followed by internal storage. Available storage is lower because the system and installed software use space.

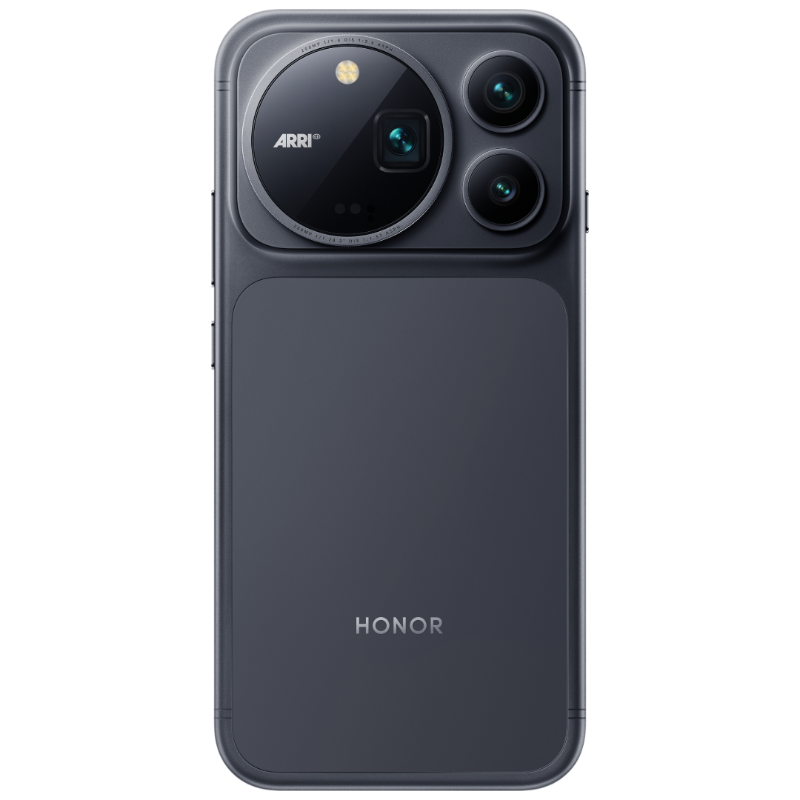

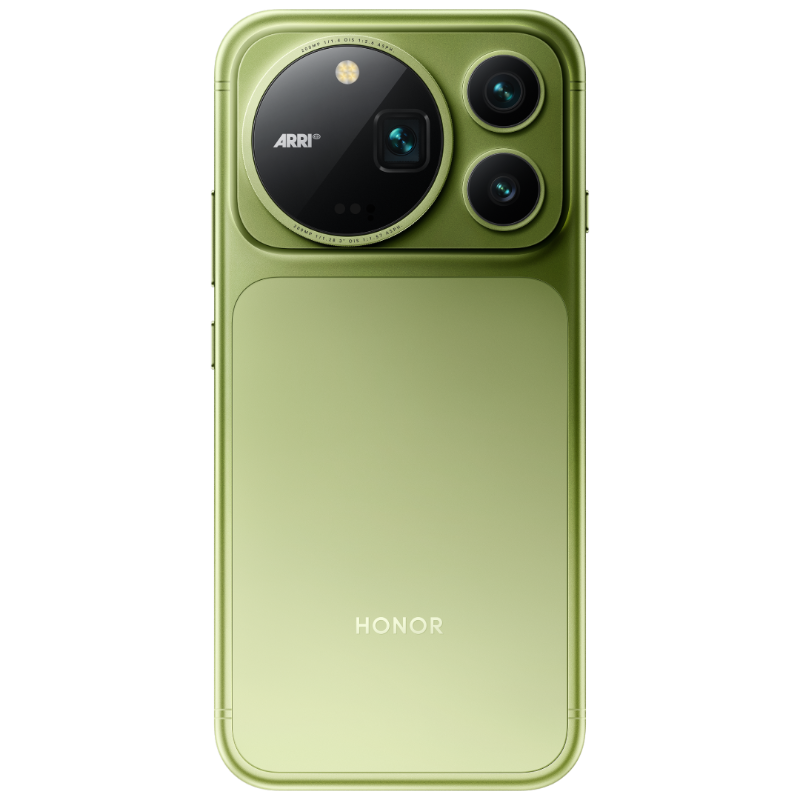

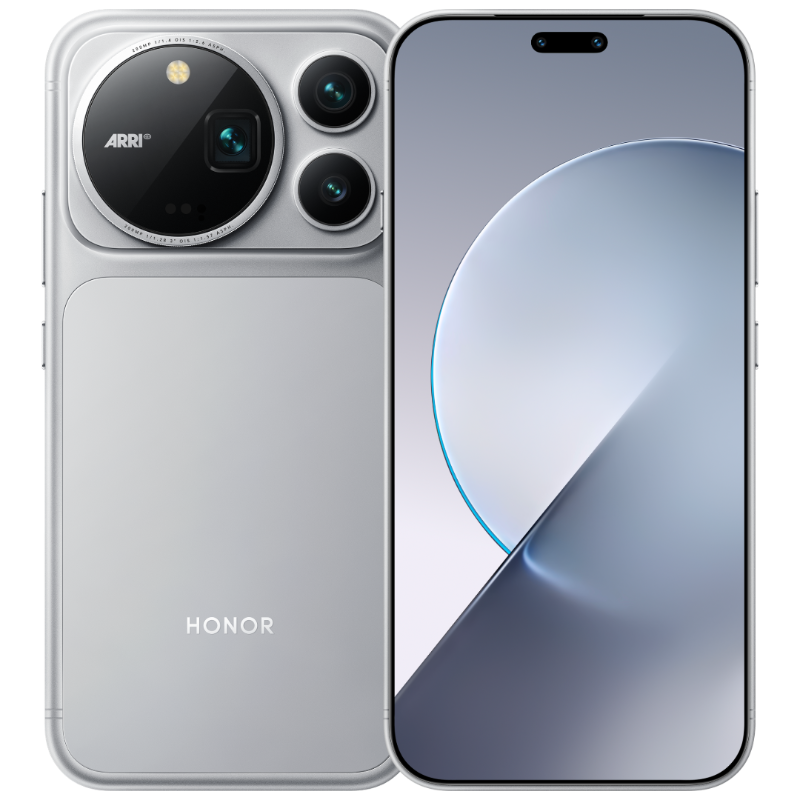

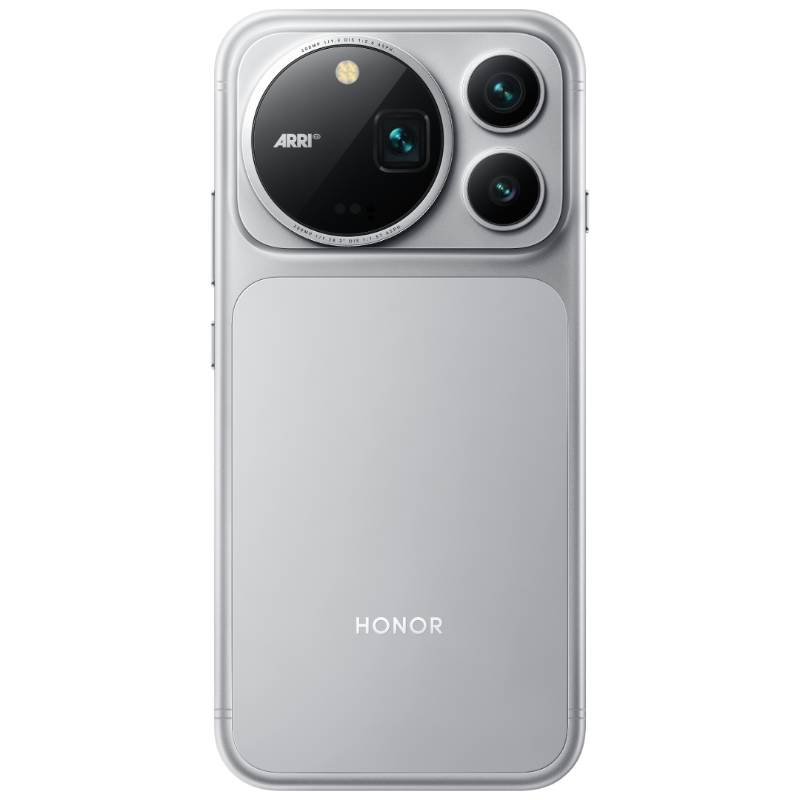

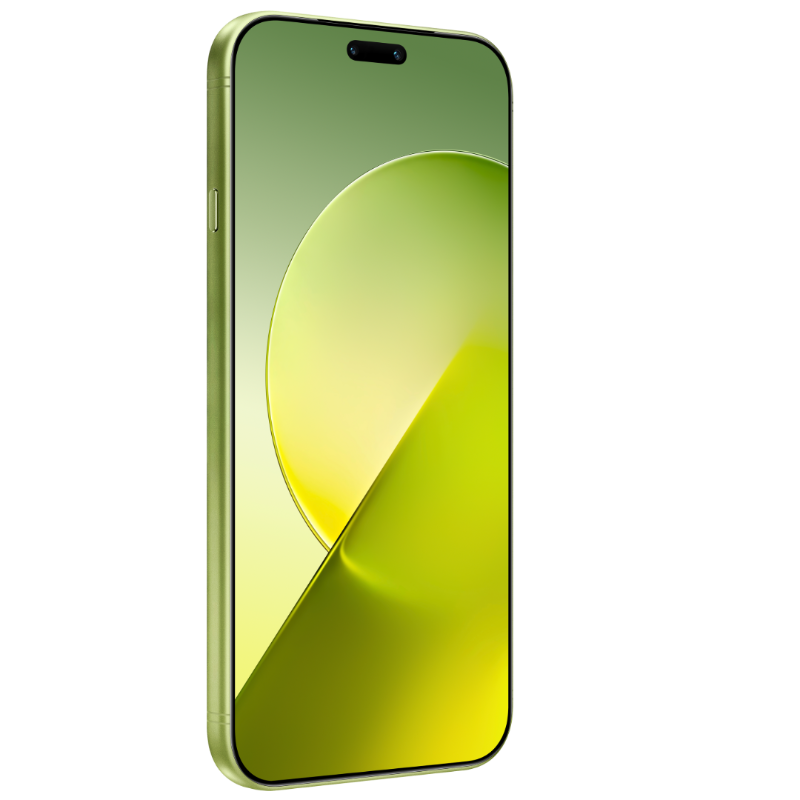

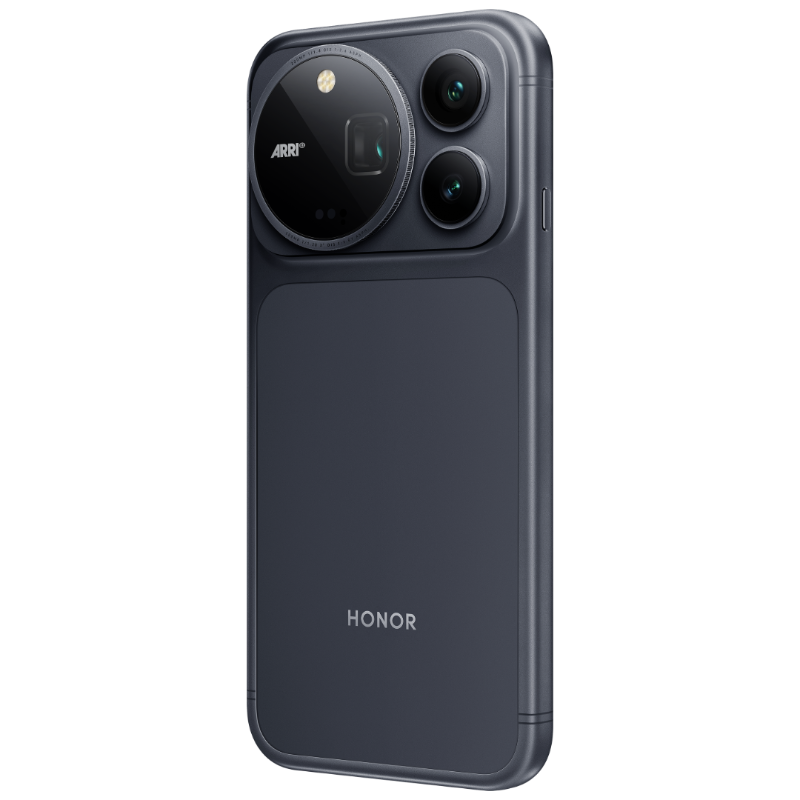

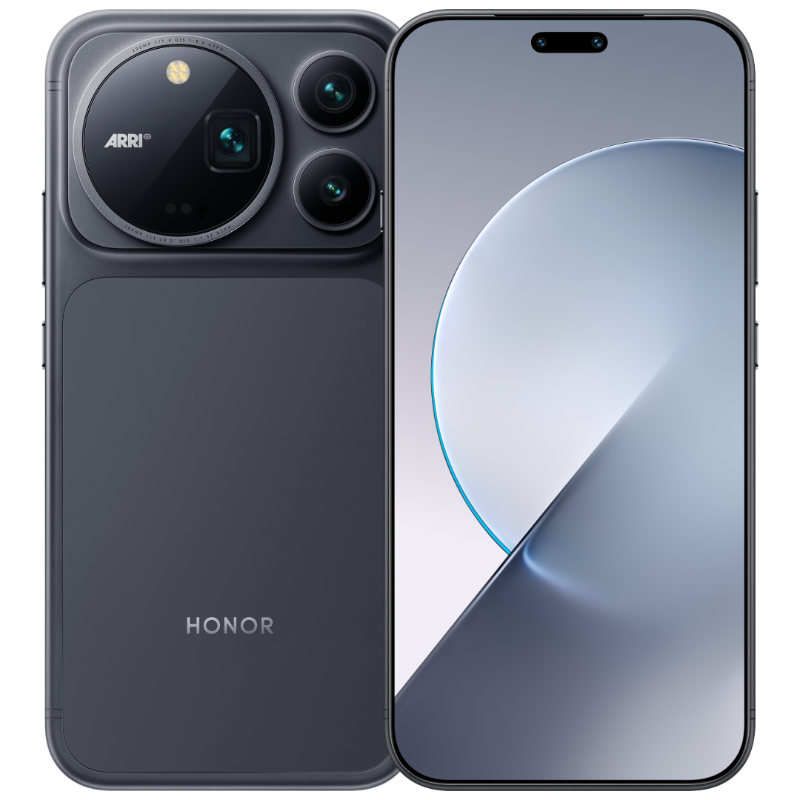

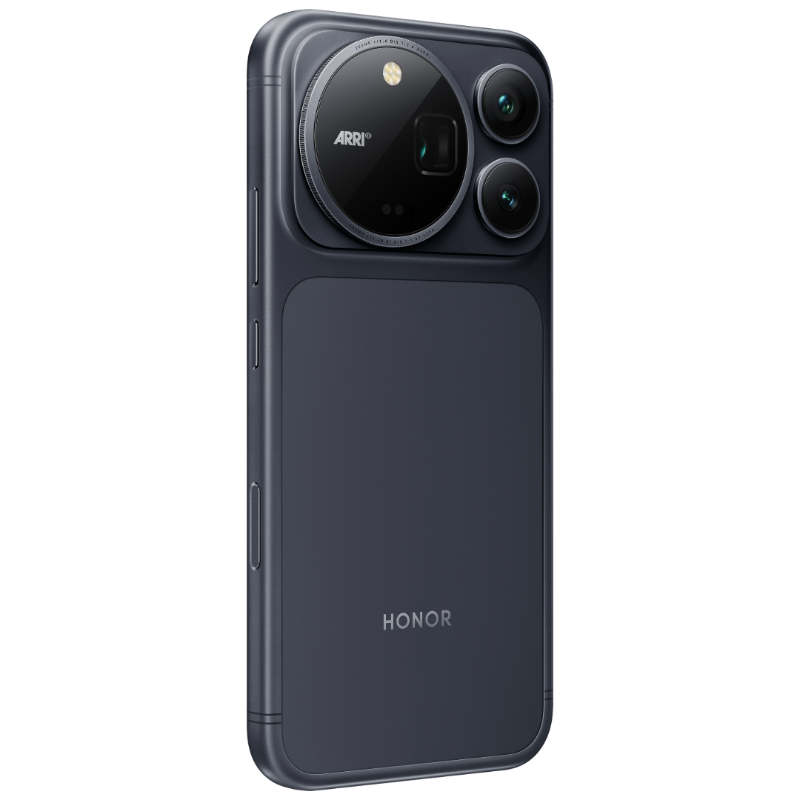

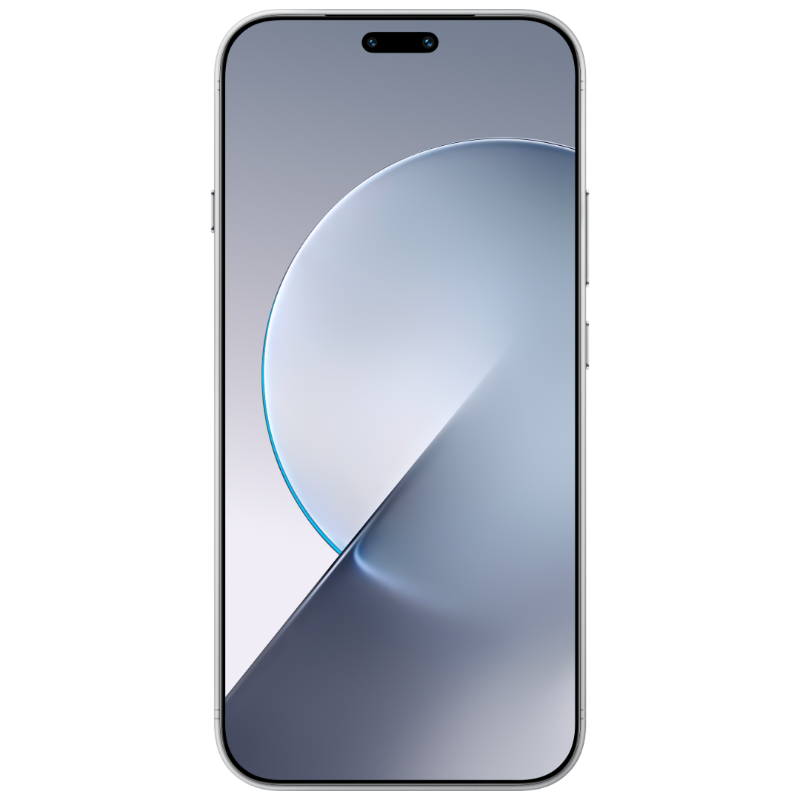

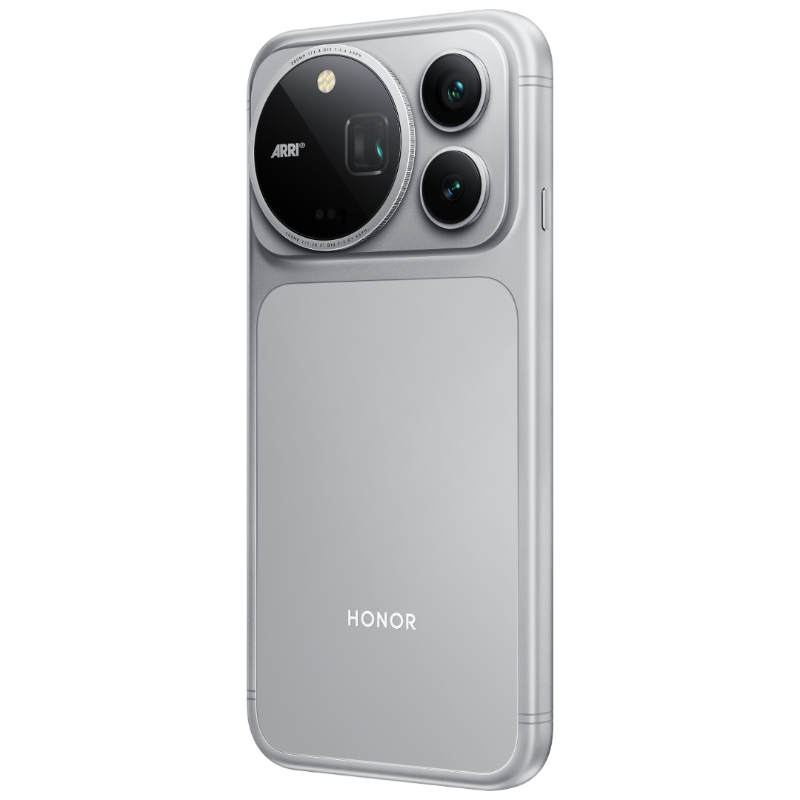

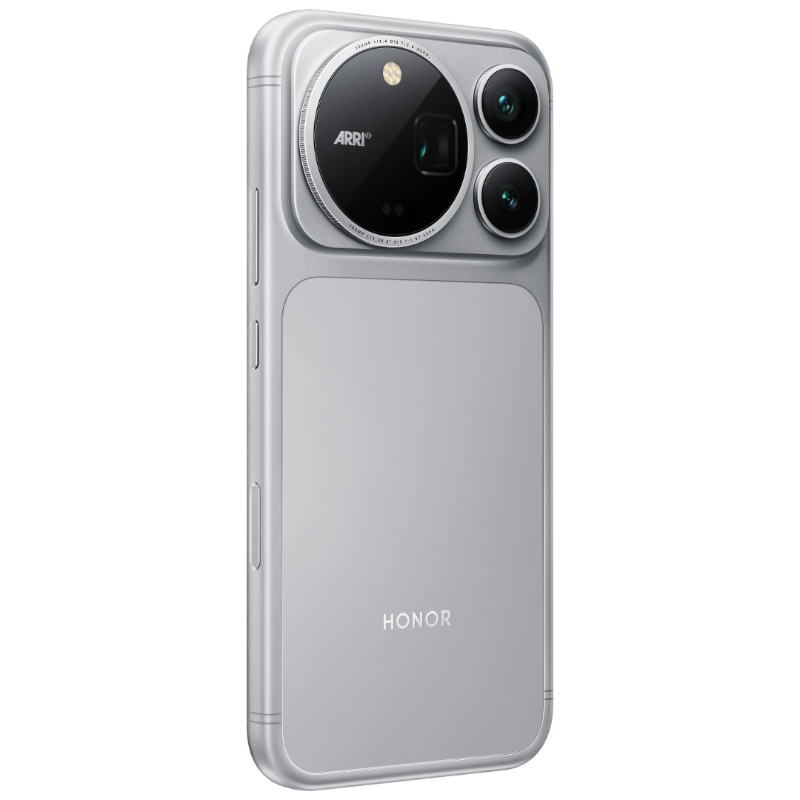

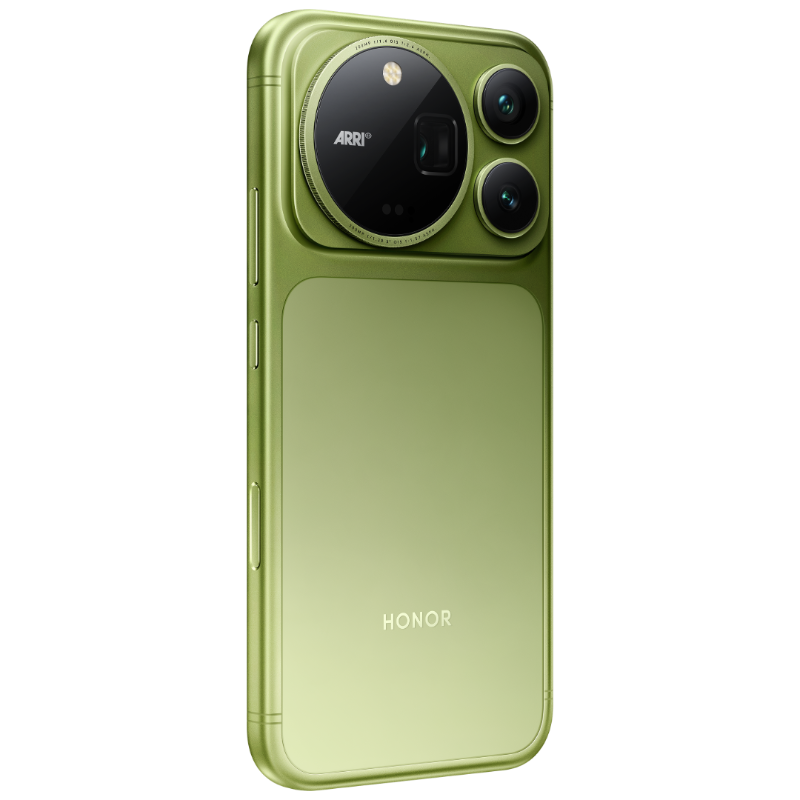

• Colors: Moss Green, Glacier Silver and Shadow Black. Each listed memory choice is offered in all three colors.
• Model-code scope: The 16GB/1TB configurations and Photography Master Kit use WKL-AN80 and are outside this WKL-AN20 listing.
• Regional use: Mobile service, VoLTE, 5G, eSIM activation and region-specific software depend on the carrier and local service availability. Check compatibility with your carrier before purchase.

Full Specifications

Design, Dimensions and Protection

• Dimensions: 161.64 × 76.98 × 8.59 mm.
• Device weight: Approximately 233 g including the battery; actual measurements may vary.
• Construction and controls: All-metal unibody enclosure; shortcut and AI keys; X-axis linear vibration motor.
• Screen protection: HONOR protective glass, listed as Giant Rhinoceros Glass in the official Chinese specification.
• Ingress protection: IP68 and IP69 under GB/T 4208-2017, and IP69K under ISO 20653:2023, tested in controlled laboratory conditions. Resistance can decrease with wear; the phone is not designed for professional underwater use. Do not charge it while wet. Manufacturer guidance excludes liquid damage from its warranty and advises avoiding seawater, pool water, chemicals, high-pressure water and steam.
• Operating environment: 0°C to 35°C; storage from −20°C to 45°C, according to the WKL-AN20 quick guide.

Display

• Panel: 6.8-inch OLED; LTPO adaptive refresh; 2.5D flat-screen design; 10-point multitouch.
• Resolution: FHD+ 1320 × 2868 pixels, measured as a standard rectangle; the effective area and pixel count are slightly smaller around rounded corners.
• Color: True 1.07 billion colors and DCI-P3 wide color gamut with compatible image and video content.
• Refresh rate: Adaptive 1–120Hz, with listed 1Hz, 60Hz, 90Hz and 120Hz operating modes depending on content and application support.
• Brightness: Up to 10,000 nits peak and 2,000 nits global peak; actual brightness depends on content and conditions.
• Image features: HDR photo and video display, hyperdynamic display, vivid-color display, HDR VIVID and Dolby Vision.
• Viewing comfort: Visual health management, personalized display 2.0, circular-polarization eye comfort 2.0, 4320Hz PWM dimming, dry-eye-friendly display, defocus vision soothing, eye-comfort mode, natural-light-like display, sleep-aiding display and natural-color display. These functions have no therapeutic purpose.
• Display certifications: TÜV Rheinland Full Care 6.0 and low-reflection certification.

Processor, Memory and Operating System

• Platform: Snapdragon 8 Elite Extreme Gen 6 Mobile Platform.
• CPU: Eight cores: 2 × Prime up to 5.01GHz, 3 × Performance up to 4.03GHz and 3 × Performance up to 3.74GHz. Clock speeds adjust dynamically.
• GPU: Adreno 850.
• RAM and internal storage: 12GB + 256GB, 12GB + 512GB or 16GB + 512GB; LPDDR5X physical RAM. Usable capacity is lower than the listed capacity.
• System: MagicOS 11 based on Android 17.
• Navigation: Gesture navigation by default, optional on-screen three-key navigation and floating navigation.

Rear Cameras and Photography

• Main camera: 200MP, f/1.57, optical image stabilization.
• Periscope telephoto: 200MP, f/2.6, optical image stabilization, 3.5× optical zoom and up to 200× digital zoom.
• Ultrawide: 50MP, f/2.0, autofocus.
• Supporting sensors: Laser autofocus, color-temperature sensor and flicker sensor; HONOR Imaging Chip H1.
• Maximum still resolution: 16384 × 12288; actual output depends on the camera and mode. Highest resolution requires high-resolution mode.
• Capture modes: New portrait styles, flash portrait, firework portrait, HONOR Falcon super burst, AI ultra-clear Harcourt portrait, Stage mode, Falcon capture, automatic capture, smart tracking, subject tracking, AI photography, high resolution, wide angle, Night, Super Macro, Portrait with beauty, moving photo, HDR, Pro, Panorama and filters.
• Capture tools: Watermark, smile shutter, voice shutter, timer, document scanning, multiple results from one recording, smart wide-angle selection, burst, telephoto picture-in-picture, Moon mode, AI ultra-clear night, AI color tracking and inspiration-assisted shots. Flash and firework portrait modes require an OTA update.
• Stabilization: Optical and electronic stabilization, depending on camera and mode.

Rear Video and Creative Modes

• Standard recording: 4K at 30/60/120fps; 1080p at 30/60fps; 720p at 30/60fps. Maximum standard resolution is 3840 × 2160. Availability depends on camera and mode.
• Slow motion and time-lapse: 1080p at 120/240fps slow motion; time-lapse up to 4K.
• Encoding and zoom: H.264/H.265; 0.5×–15× video zoom.
• Video stabilization: Main and telephoto optical stabilization, ultrawide electronic stabilization; supported behavior varies by recording mode.
• Video tools: Video beauty, audio zoom, stereo sound and Bluetooth-headset audio recording.
• ARRI CINEMA: Up to 4K 60fps, ARRI LogC3, 10-bit color and ARRI Wide Gamut 3 in this mode, with camera and mode restrictions. Requires an OTA update.
• ARRI Looks: 14 presets and a library of 87 creative grades. ARRI Looks editing applies to videos recorded in ARRI CINEMA.
• Cinematic LiveVideo: Moving clips up to 4K; some functions require an OTA update. Optional HONOR G200/G500 teleconverters and SmallRig video accessories are not included.

Front Cameras

• Hardware: 55MP front camera, f/2.0, up to 92° field of view, plus a 3D depth camera.
• Still capture: Up to 8576 × 6432; actual resolution depends on the mode.
• Video: 4K, 1080p or 720p at 30/60fps; up to 3840 × 3840 in the applicable mode; H.264/H.265 encoding; 0.8× and 1× framing; electronic stabilization.
• Photo modes: Landscape capture while holding the phone vertically, flexible cropping, Portrait, filters, smile shutter, mirrored capture, voice shutter, timer, gesture shutter, Night, selfie ring fill light and high resolution.
• Video features: Beauty, audio focus, stereo sound and Bluetooth-headset audio.
• Face recognition: 3D face recognition.

Battery and Charging

• Battery: HONOR Qinghai Lake silicon-carbon lithium-ion polymer battery; 8,800mAh typical and 8,600mAh rated capacity; built in and non-removable.
• Wired charging: Up to 100W HONOR SuperCharge, 20V/5A; compatible with 11V/6A, 20V/3.3A and 5V/2A. Maximum performance requires the original charger and cable.
• Wireless charging: Up to 80W with a compatible original HONOR wireless charger rated at least 80W, sold separately. Actual power varies.
• Reverse charging: Reverse wireless charging and up to 27W reverse wired charging for devices tested by HONOR. OTG supplies 5V/1A. Maximum reverse wireless performance requires at least 90% battery charge and a compatible SCP charger with the original cable, as specified in the quick guide.
• Charging management: Smart charging supported.

Mobile Networks and SIM

• SIM: Two nano-SIM slots; eSIM support with up to two stored numbers, subject to carrier activation, service availability and fees.
• China Mobile: 5G-A, 5G, 4G+, 4G and 2G.
• China Telecom: 5G-A, 5G, 4G+ and 4G.
• China Unicom: 5G-A, 5G, 4G+, 4G, 3G and 2G.
• China Broadnet: 5G-A, 5G, 4G+ and 4G.
• Radio features: 4 × 4 MIMO, carrier aggregation, HPUE and HO RxD; HONOR C3 RF enhancement chip.
• Dual-SIM operation: Either SIM can be selected for mobile data. With two China Telecom SIMs, the secondary SIM requires VoLTE service. Network availability depends on carrier deployment and location.
• Reported frequency bands: GSMArena's WKL-AN20 listing reports GSM 850/900/1800/1900MHz and HSDPA 850/900/1700 AWS/1900/2100MHz. It identifies LTE and 5G SA/NSA without numbered LTE or NR bands. These secondary-source details are partial; a complete WKL-AN20 LTE/5G band list was not available in the checked manufacturer documents.
• Connection services: HONOR priority-network service, global roaming service, smart network selection and Link Turbo X. The priority-network service activates intelligently in congestion and is offered free for a limited time under manufacturer terms; availability depends on carrier deployment. Other service access and terms depend on the provider and region.

Wi-Fi, Bluetooth and Connections

• Wi-Fi: 802.11 a/b/g/n/ac/ax/be/bn, including Wi-Fi 6, Wi-Fi 7 and Wi-Fi 8. Wi-Fi 8 requires an OTA update and a compatible router.
• Wi-Fi features: 2.4GHz and 5GHz; simultaneous dual-band connection, hotspot, Wi-Fi Direct, MLO, 4096-QAM, 160MHz bandwidth and MU-MIMO. The listed 5GHz 2 × 4 MIMO capability requires an OTA update. Wi-Fi 7 also requires compatible network equipment.
• Bluetooth: Bluetooth 6.3, BLE, LE Audio and Auracast.
• Bluetooth codecs: SBC, AAC, LDAC, aptX, aptX HD, aptX Adaptive, aptX Lossless, LC3 and LHDC 5/4/3. Compatible headphones and software are required.
• Hearing-device protocols: ASHA and LE Audio.
• Wired interface: USB Type-C, USB 3.2 Gen 1 and DisplayPort 1.2; high-speed operation requires a compatible USB 3.2 cable purchased separately. The included cable supports USB 2.0.
• Additional connections: USB-C headphones, OTG, wired and wireless screen projection, PC data synchronization and carrier or third-party video calls.
• Infrared: Built-in transmitter; infrared self-learning is not supported.
• NFC: Reader/writer and card-emulation modes, HONOR Wallet, NFC-SIM and HCE. NFC-SIM uses slot 1, facing away from the display; detection areas include the phone's top and the rear telephoto-camera region. Availability depends on service and region.

Location, Sensors and Sound

• Satellite positioning: BeiDou B1I/B1C/B2a/B2b; GPS L1/L5; GLONASS G1; Galileo E1/E5a/E5b; QZSS L1/L5; NavIC L1/L5; A-GNSS assistance.
• Sensors: Gravity, infrared, fingerprint, Hall, acceleration, gyroscope, compass, ambient light and proximity. Ultrasonic fingerprint recognition; the Hall sensor detects magnetism but does not support a flip-cover function.
• Playback: Stereo speakers and HONOR Sound.
• Recording: Four-microphone system with cinematic directional recording, rear three-microphone audio zoom and front three-microphone audio focus. AI call-noise reduction supports VoIP and circuit-switched calls. Bluetooth-headset remote recording requires compatible apps.
• Audio formats: MP3, MP4, 3GP, OGG, AMR, AAC, FLAC, WAV and MIDI.
• Video formats: 3GP and MP4.

Software, Assistance and Personalization

• YOYO and AI tools: YOYO Tasks, one-touch notes, YOYO suggestions, YOYO Agent, AI call assistant, AI translation, full-screen translation, voice translation, AI captions, AI calendar, AI search, AI documents, AI notes, YOYO Memory, personal affairs center and YOYO Assistant.
• Interaction and performance: Breath wake, Magic Text, Turbo X engine, HONOR Hummingbird architecture, smart connectivity, Magic Portal, HONOR Tap Transfer, iPhone connectivity and smart RAM management.
• Appearance: Customizable large desktop folders; personalized lock screen; liquid-glass, frosted-glass and flowing translucent styles; cube customization; Magic Avatar; interactive themes; Magic Capsule; Magic Lock Screen; full-screen always-on display; translucent customization; lock-screen widgets; music lock screen and artistic clock.
• Organization and multitasking: Notification organization, customizable Control Center, voice call control, multiscreen collaboration, desktop mode, AI Vision, smart screen recognition and multiwindow.
• Everyday tools: Dark mode, e-book mode, status-interactive always-on display, clean file manager, gaze keeps screen on, gaze lowers incoming-call volume, HONOR Share, quick launch and gestures, App Twin, Device Clone, business-card scanning, backup and restore, and Maintenance mode.
• Cross-device requirements: Some features require updates, supported apps and compatible devices. HONOR Connect file transfer with Apple and Windows devices requires the HONOR Connect app with iOS 17.0+, macOS 12.0+ or Windows 10.0+, as applicable.

Security and Privacy

• AI face-swap and voice-swap detection; Parallel Space; dual TEE; phone shield; password vault; approximate location; privacy assistant; App Lock; payment protection center; Privacy Moment; app-redirection pop-up alerts; call-fraud prevention and an anti-fraud firewall. Availability depends on supported services and software.

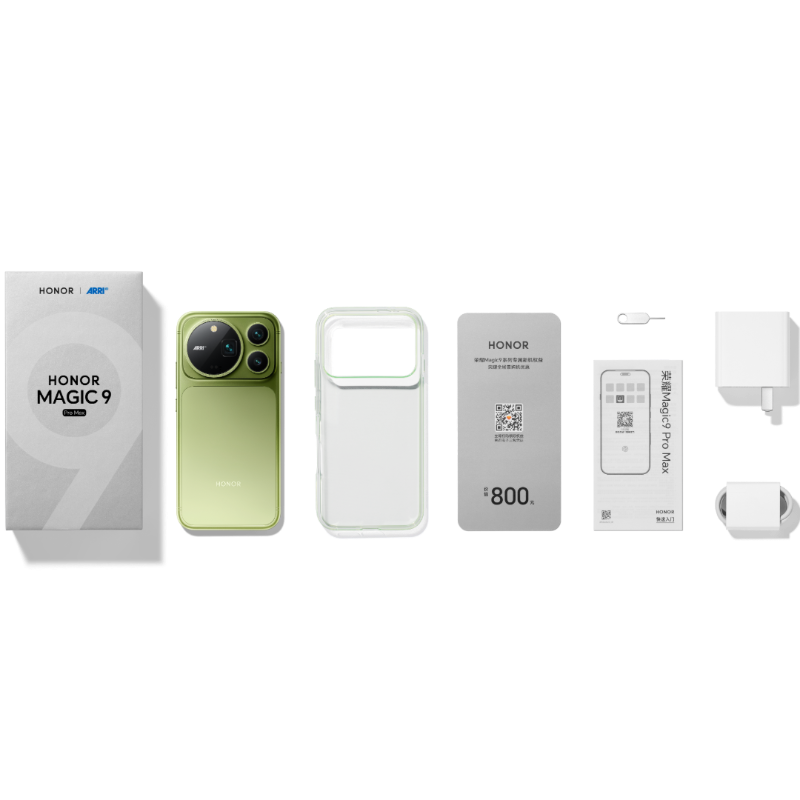

In the Box

• Phone with built-in battery, quick-start guide, HONOR SuperCharge charger, USB Type-C cable, SIM-eject tool, protective case and new-device benefits card with electronic warranty information.
• The standard package is shrink-wrapped. Actual included items and paperwork govern; regional manufacturer benefits do not establish a separate retailer warranty. Wireless chargers, teleconverters and the Photography Master Kit are not included.
